LED Video Fresnel Spot Light

Home » Products » LED Video Fresnel Spot Light » VG-PB100W

VG-PB100W
  • VG-PB100W
  • VG-PB100W
  • VG-PB100W
  • VG-PB100W
  • VG-PB100W
  • VG-PB100W
  • VG-PB100W

Model: VG-PB100W

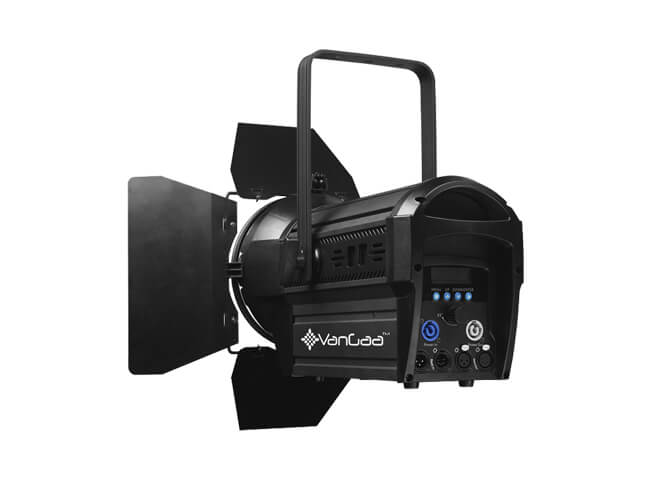

Name: 100W LED TV Studio Fresnel Continuous Light

Product Model: VG-PB100W

Commissioning Date: 2016-04

Sales Status: Selling

Reference Price:

·This television projector light equips high power 100W LED lamps as the light source, it’s energy saving. And it uses high efficiency optical lens, light soft. It’s a best choice for film and television performances, studio and other places.

Features

·The internal adopts full copper radiator large area, good heat dissipation, ensure the lifespan of the LED Lamps;

·Through efficient optical lenses, with special heat dissipation design, make the light is downy, small stray light, no glare, eyes more comfortable;

·Use the LED video projector scheme, the light energy saving 80%;

·Because of almost no infrared radiation, it has greatly improve work environment.

Technical Specifications

Light Sources

·LED: 1pc 100W COB LED Lamps

·Lifespan: 500,000h

·Color: CW, WW optional

Optics

·Beam angle: 15-60degree

·Dimmer: 0-100% linear dimmer

Light Output

·Luminous flux: 3810

·Illuminance: 1800 Lux (6m 15°)

·Optimal projection distance: 15-30m

Control

·Control mode: DMX-512; Auto run

·DMX channel: 1CH, 2CH

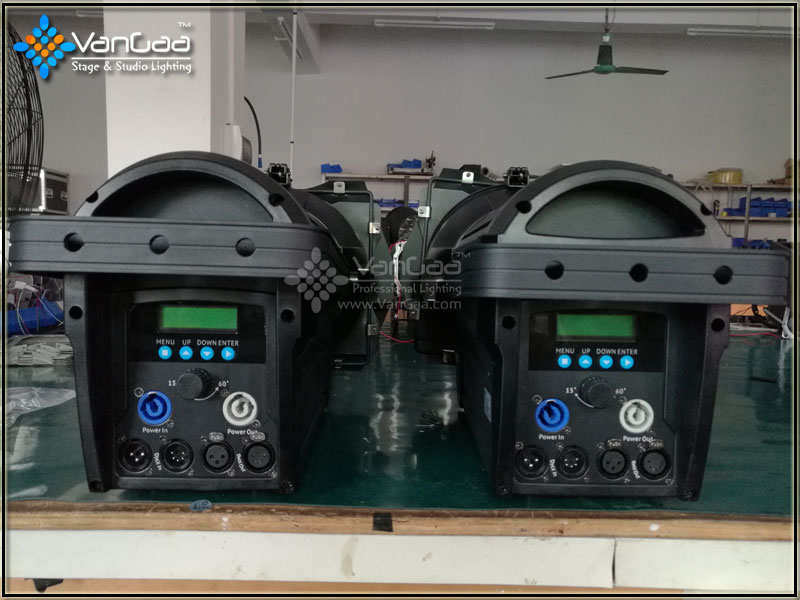

·Display of control panel: digital tube

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 150W

Construction

·Body dimension: D384*W251*H261mm

·Net weight: 4.8kg

·Shell color: black

·Shell material: aluminium die casting

Working Environment

·Working temperature: -25-40℃

·Cooling: Radiator and Fan

·Protection rating: IP20

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

Optional Configuration Spare Parts List

·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

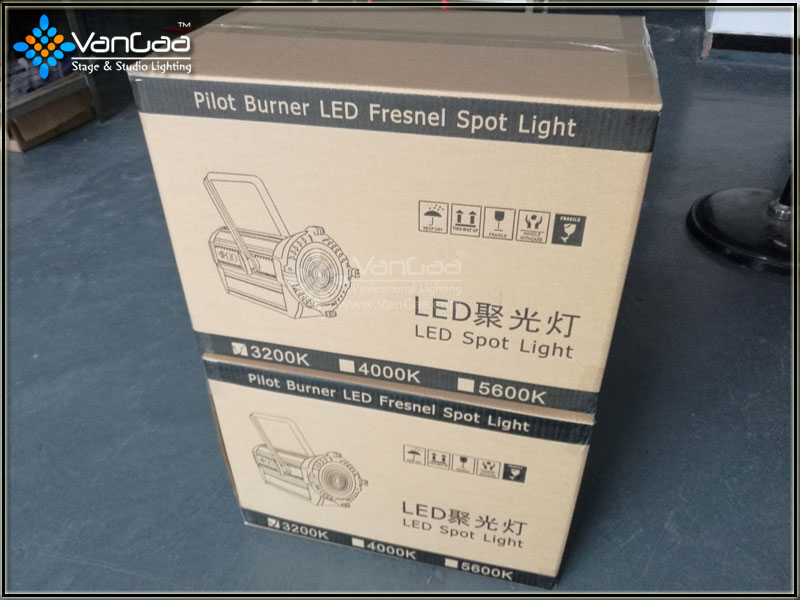

Package

·Carton board package size: 510*320*370mm(1pc/carton)

·N.W/G.W/V.W: 4.8kg/6kg/13kg

·Flight case package size: 745*640*650(4pcs/flight case)

·Net weight of flight case: 30kg

·N.W/G.W/V.W: 24kg/54kg/63kg

·Flight case package size: 1100*640*650(6pcs/flight case)

·Net weight of flight case: 34kg

·N.W/G.W/V.W: 36kg/70kg/92kg

Selling Maintain Spare Parts List

·Switching power supply: Pilot Burner 100W-P

·LED lamp board: Pilot Burner 100W-L

·Main board: Pilot Burner 100W-M

·Drive board: Pilot Burner 100W-D
