Model: VG-K10

Name: 10pcs Beehive LED Moving Head Wash Light

Product Model: VG-K10
Commissioning Date: 2018-10-30
Sales Status: Selling
Reference Price:  Inquiry Here

·This is a high power 19pcs 4in1 beehive led moving head wash light, this light is best used for performance, club, stage and other entertainment places.

Features

·4-60 degree electronic zoom range;

·Bi-directional rotating front lens;

·Has wash, beam effect;

·0-100% linear;

·Every led lamp can be controlled.

Technical Specifications

Light Sources

·LED: 19pcs 15W 4in1 LEDs

·Lifespan: 50000h

·Color: RGBW 4in1 LEDs

Optics

·Beam angle: 4-60degree

·Strobe: 1-25times/second

·Dimmer: Smooth dimmer from 0-100%

Light Output

·Illuminance: 42000 Lux (5m 4°)

·Optimal projection distance: 3-10m

Movement

·Pan(X axle): 540°

·Tilt(Y axle): 270°

Control

·Control mode: DMX512; Master/salve; Demo

·DMX channel: 21CH, 35CH, 78CH, 92CH, 97CH

·Display of control panel: 128*64 pixel LCD display + 4 buttons

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 600W

Construction

·Body dimension: D440*W280*H500mm

·Net weight: 15kg

·Shell color: black

·Shell material: ABS + metal

Working Environment

·Working temperature: -25-40℃

·Cooling: Fan

·Protection rating: IP20

Equipment Optional Configuration

·Built-in battery: have the off-power setting ID address function

·Net work: artnet net work, can use the artnet signal control

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

·Clamp bridge: 1 set clamp bridge

Optional Configuration Spare Parts List

·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

Package

·Carton board box package size: 480*350*510mm (1pc/carton)[f:20-04-09]

·N.W/G.W/V.W: 15kg/19kg/18kg

·Flight case package size: 890*460*680mm(2pcs/case)[f:20-04-09]

·N.W/G.W/V.W: 30kg/61kg

·Flight case package size: 980*810*710mm(4pcs/case)[f:20-04-09]

·N.W/G.W/V.W: 60kg/111kg

Selling Maintain Spare Parts List

·Switching power supply: VG-K10-P

·LED lamp board: VG- K10-L

·Main board: VG-K10-M

·Drive board: VG-K10-D
Related Products

Model: VG-K10

Name: 10pcs Beehive LED Moving Head Wash Light

Product Model: VG-K10
Commissioning Date: 2018-10-30
Sales Status: Selling
Reference Price:  Inquiry Here
  • VG-K10
  • VG-K10
  • VG-K10
  • VG-K10
  • VG-K10
  • VG-K10
  • VG-K10
  • VG-K10
Technical Specification

·This is a high power 19pcs 4in1 beehive led moving head wash light, this light is best used for performance, club, stage and other entertainment places.

Features

·4-60 degree electronic zoom range;

·Bi-directional rotating front lens;

·Has wash, beam effect;

·0-100% linear;

·Every led lamp can be controlled.

Technical Specifications

Light Sources

·LED: 19pcs 15W 4in1 LEDs

·Lifespan: 50000h

·Color: RGBW 4in1 LEDs

Optics

·Beam angle: 4-60degree

·Strobe: 1-25times/second

·Dimmer: Smooth dimmer from 0-100%

Light Output

·Illuminance: 42000 Lux (5m 4°)

·Optimal projection distance: 3-10m

Movement

·Pan(X axle): 540°

·Tilt(Y axle): 270°

Control

·Control mode: DMX512; Master/salve; Demo

·DMX channel: 21CH, 35CH, 78CH, 92CH, 97CH

·Display of control panel: 128*64 pixel LCD display + 4 buttons

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 600W

Construction

·Body dimension: D440*W280*H500mm

·Net weight: 15kg

·Shell color: black

·Shell material: ABS + metal

Working Environment

·Working temperature: -25-40℃

·Cooling: Fan

·Protection rating: IP20

Equipment Optional Configuration

·Built-in battery: have the off-power setting ID address function

·Net work: artnet net work, can use the artnet signal control

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

·Clamp bridge: 1 set clamp bridge

Optional Configuration Spare Parts List

·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

Package

·Carton board box package size: 480*350*510mm (1pc/carton)[f:20-04-09]

·N.W/G.W/V.W: 15kg/19kg/18kg

·Flight case package size: 890*460*680mm(2pcs/case)[f:20-04-09]

·N.W/G.W/V.W: 30kg/61kg

·Flight case package size: 980*810*710mm(4pcs/case)[f:20-04-09]

·N.W/G.W/V.W: 60kg/111kg

Selling Maintain Spare Parts List

·Switching power supply: VG-K10-P

·LED lamp board: VG- K10-L

·Main board: VG-K10-M

·Drive board: VG-K10-D

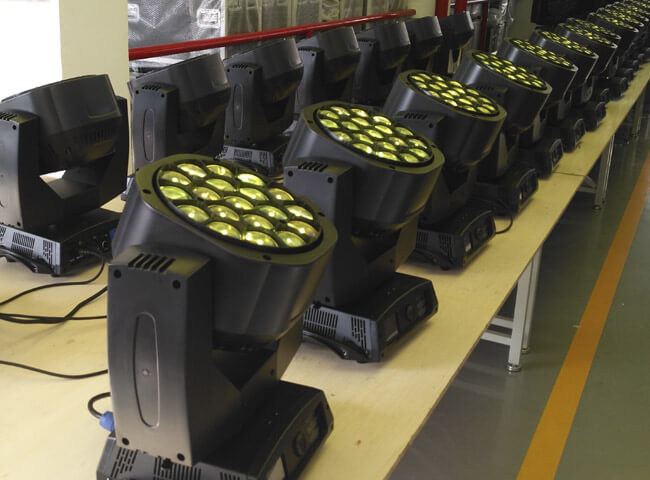

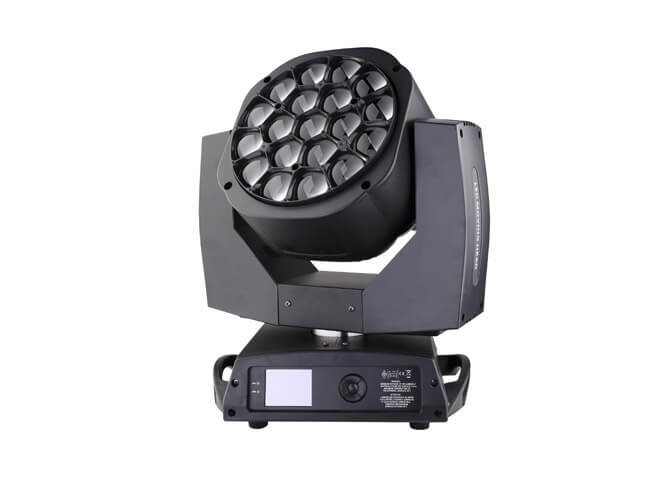

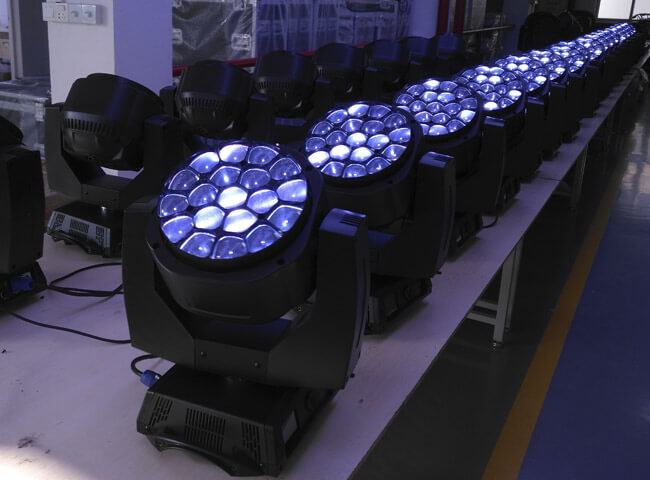

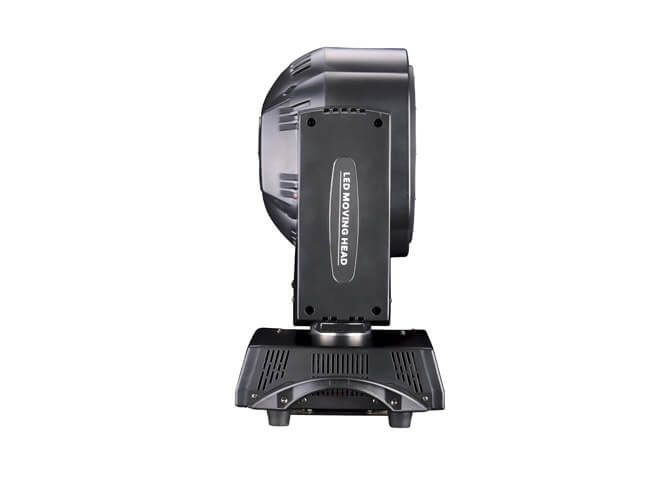

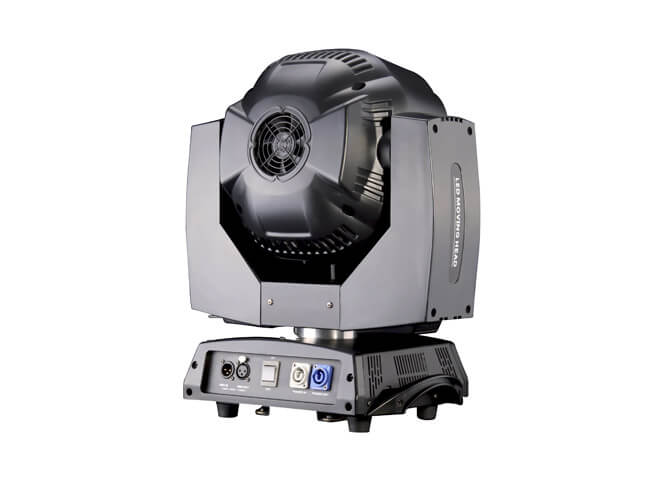

Details Pictures
