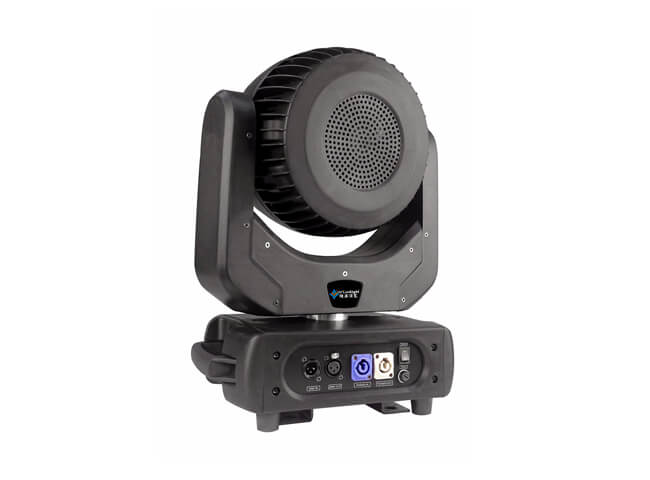

·This is a powerful LED moving head zoom light with a zoom range from 10 degrees to 60 degrees. It can be a beam light or a moving head light. The light is very suitable for stage performances, theaters, televisions, studios, rentals and other entertainment venues.
Product Features
·Super small, fast and powerful LED moving head beam zoom light;
·The zoom range is from 10 degrees to 60 degrees;
·Excellent built-in lighting, which can display programs in master/slave mode;
·Blue LCD display, easy to navigate;
·Perfect stage, theater, TV, studio, rental and disco.
Technical Parameters
Light Source
·LED: 19pcs 30W 4 in 1 LED lights
·Life: >20000h
·Color: RGBW 4 in 1 colorful
·CTO: 2700K-8000K, 8-level color temperature adjustment
Optics
·Beam angle: 10-60°
·Electronic zoom range: 6°-50°
·Dimmer: 0-100% linear dimmer
·Strobe: 1-25 times/second
Light output
·Illumination: 108500 Lux (full @ 1m 15°)
·Best projection distance: 4-50m
Movement
·Motors: two fast 3-phase motors for pan/tilt
·Translation (X axis): 540°
·Tilt (Y axis): 310°
Control
·Control mode: DMX-512 control, stand-alone, master-slave synchronization.
·DMX channel: 16CH, 28CH
·Display: LCD
Power supply
·Related voltage: AC90V-240V, 50/60Hz
·Related power: 600W
·Input/Output: 3-core/5-core DMX XLR
·Power connector: POWERCON input/output
Shape
·Body size: D362 * W240 * H500mm
·Net weight: 14.6kg
·Shell color: black/silver/white, optional
·Shell material: heat-resistant plastic + module pressing alloy material
Working environment
·Working temperature: -25-40 ℃
·Cooling fan
·Protection level: IP20 indoor use
Standard spare parts list
·Cable: 1PCS 3-pin/5-core DMX cable, 1 power cable with plug (American standard, European standard or other standard)
·User manual: English version user manual
·Splint: 1 set of splint
Optional spare parts list
·Clamps: different styles of clamps are available (choose from the "Accessories Series" on the VanGaa homepage)
·Safety rope: different sizes of safety ropes can be used (choose from the "Accessories Series" on the VanGaa homepage)
Package
·Carton: mm (1 sets/carton)
·N.W/G.W:
Sales repair spare parts list
·Switching power supply: DYE1930-P
·LED light board: DYE1930-L
·Motherboard: DYE1930-M
·Drive board: DYE1930-D
