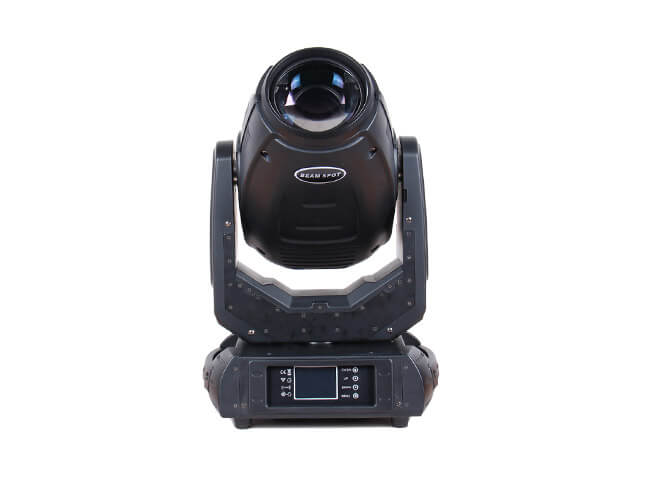

Model: VG-MH280A

Name: 280W Moving Head Spot Beam Wash Light

Product Model: VG-MH280A

Commissioning Date: 2014-03

Sales Status: Selling

Reference Price:

·This newest style 280W intelligent moving head spot beam wash light has novel design and compact structure can be as a very professional moving head light. It has small beam angle, bean angle scale freely, has multistage beam angle change effect. It has high brightness, downy lighting, and professional linear focus to meet the high quality lighting needs. This type moving head light can be widely used in professional stage performances, studio, TV station, the theatre and other entertainment places.

Features

·New style intelligent moving head light, beam lighting with zoom function;

·Double prism effect, beam angle adjustable;

·4.5 degree beam, close to the parallel light, electronic linear focus, multistage beam angle change effect;

·Built-in long life battery which can be automatically charging, don't need connect the power to set the address ID.

Technical Specifications

Light Sources

·Lamp: 280W lamp

·Lifespan of lamp: average 2000h

·Color: white, 8000K

·Ballast: Electronic Ballast

Optics

·Style: Beam spot wash 3-in-1 moving head light

·Color wheel: 13 dichroic filters + white

·Rotating Gobo Wheel: with 9 bidirectional and indexable gobos (Ø 15.4mm, at variable Ø 13mm)

·Static Gobo wheel:  with 14 fixed gobos, at variable rotation

·Prism 1: 8-facet circular prism rotating in both directions at different speeds

·Prism 2: 6-facet linear prism rotating in both directions at different speeds

·Lens: High precision optical lens, five layer coating

·Zoom: 8.7degree~23degree

·Zoom range: 8.7degree~23degree spot application; 3.8degree~8.7degree beam angle application

·Atomizing angle: 60degree

·Wash effect : adjustable Wash effects angle

·Focus: linear adjustment

·Dimmer: 0~100% linear adjustment

·Beam angle: 8.7degree~23degree

·Strobe: double lens strobe (0.5~9 times/second)

Light Output

·Luminous flux: 60000 Lm

·Illuminance: 60000 Lux (5m 10°)

·Optimal projection distance: 4-40m

Movement

·Pan(X axis): 540°automatically accurate positioning

·Tilt(Y axis): 270°automatically accurate positioning

Control

·Control mode: Standard DMX512, Automatic and Master/ slave mode

·DMX channel: 17CH/24CH

·Display of control panel: four buttons LCD display

·Other function: Controller can open the lamp and reset, including delaying function

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 450W

Construction

·Body dimension: D380*W240*H900mm

·Net weight: 18.5kg

·Shell color: black

·Shell material: ABS

Working Environment

·Working temperature: -25-40℃

·Cooling: Fan

·Protection rating: IP20

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

·Clamp bridge: 1 set clamp bridge

Optional Configuration Spare Parts List

·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

Package

·Carton board package size: 460*460*590mm(1pc/carton)

·N.W/G.W/Volume weight : 18.5kg/19.5kg/25.5kg

·Flight case package size: 1000*310*1030mm(2pcs/case)

·N.W/G.W: 38kg/72kg

·Flight case package: 1000*570*1030mm(4pcs/case)

·N.W/G.W: 76kg/118kg

Selling Maintain Spare Parts List

·Switching power supply: VG-MH280A-P

·Lamp: VG-MH280A -L

·Main board: VG-MH280A-M

·Drive board: VG-MH280A-D




AD

Related Products

Model: VG-MH280A

Name: 280W Moving Head Spot Beam Wash Light

Product Model: VG-MH280A

Commissioning Date: 2014-03

Sales Status: Selling

Reference Price:

  • VG-MH280A
  • VG-MH280A
  • VG-MH280A
  • VG-MH280A
  • VG-MH280A
  • VG-MH280A
  • VG-MH280A
  • VG-MH280A
Technical Specification

·This newest style 280W intelligent moving head spot beam wash light has novel design and compact structure can be as a very professional moving head light. It has small beam angle, bean angle scale freely, has multistage beam angle change effect. It has high brightness, downy lighting, and professional linear focus to meet the high quality lighting needs. This type moving head light can be widely used in professional stage performances, studio, TV station, the theatre and other entertainment places.

Features

·New style intelligent moving head light, beam lighting with zoom function;

·Double prism effect, beam angle adjustable;

·4.5 degree beam, close to the parallel light, electronic linear focus, multistage beam angle change effect;

·Built-in long life battery which can be automatically charging, don't need connect the power to set the address ID.

Technical Specifications

Light Sources

·Lamp: 280W lamp

·Lifespan of lamp: average 2000h

·Color: white, 8000K

·Ballast: Electronic Ballast

Optics

·Style: Beam spot wash 3-in-1 moving head light

·Color wheel: 13 dichroic filters + white

·Rotating Gobo Wheel: with 9 bidirectional and indexable gobos (Ø 15.4mm, at variable Ø 13mm)

·Static Gobo wheel:  with 14 fixed gobos, at variable rotation

·Prism 1: 8-facet circular prism rotating in both directions at different speeds

·Prism 2: 6-facet linear prism rotating in both directions at different speeds

·Lens: High precision optical lens, five layer coating

·Zoom: 8.7degree~23degree

·Zoom range: 8.7degree~23degree spot application; 3.8degree~8.7degree beam angle application

·Atomizing angle: 60degree

·Wash effect : adjustable Wash effects angle

·Focus: linear adjustment

·Dimmer: 0~100% linear adjustment

·Beam angle: 8.7degree~23degree

·Strobe: double lens strobe (0.5~9 times/second)

Light Output

·Luminous flux: 60000 Lm

·Illuminance: 60000 Lux (5m 10°)

·Optimal projection distance: 4-40m

Movement

·Pan(X axis): 540°automatically accurate positioning

·Tilt(Y axis): 270°automatically accurate positioning

Control

·Control mode: Standard DMX512, Automatic and Master/ slave mode

·DMX channel: 17CH/24CH

·Display of control panel: four buttons LCD display

·Other function: Controller can open the lamp and reset, including delaying function

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 450W

Construction

·Body dimension: D380*W240*H900mm

·Net weight: 18.5kg

·Shell color: black

·Shell material: ABS

Working Environment

·Working temperature: -25-40℃

·Cooling: Fan

·Protection rating: IP20

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

·Clamp bridge: 1 set clamp bridge

Optional Configuration Spare Parts List

·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

Package

·Carton board package size: 460*460*590mm(1pc/carton)

·N.W/G.W/Volume weight : 18.5kg/19.5kg/25.5kg

·Flight case package size: 1000*310*1030mm(2pcs/case)

·N.W/G.W: 38kg/72kg

·Flight case package: 1000*570*1030mm(4pcs/case)

·N.W/G.W: 76kg/118kg

Selling Maintain Spare Parts List

·Switching power supply: VG-MH280A-P

·Lamp: VG-MH280A -L

·Main board: VG-MH280A-M

·Drive board: VG-MH280A-D




AD

Details Pictures

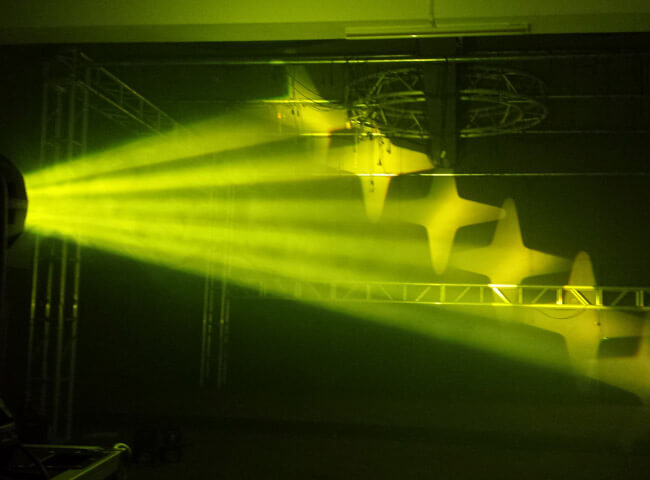

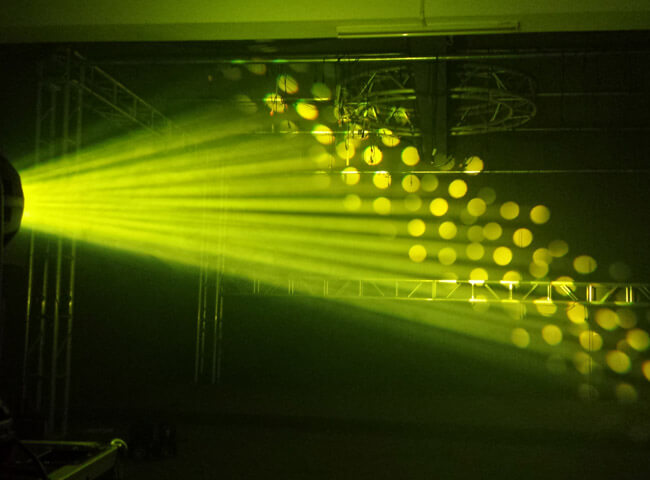

Effect Pictures
