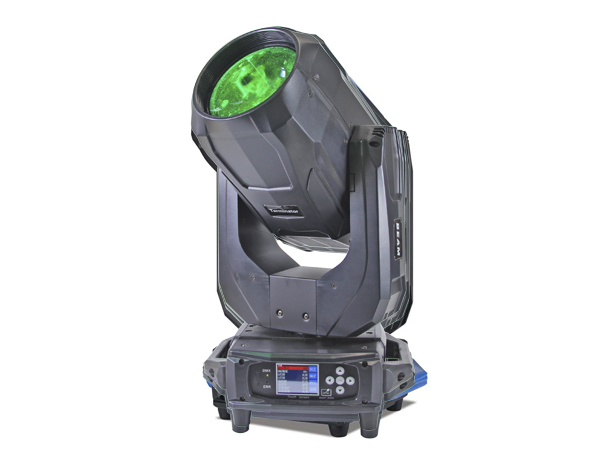

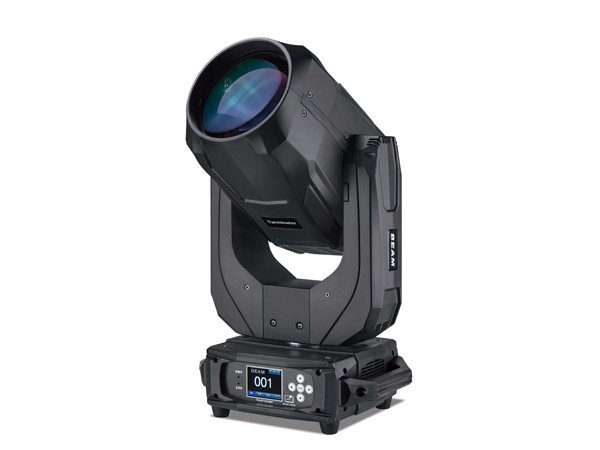

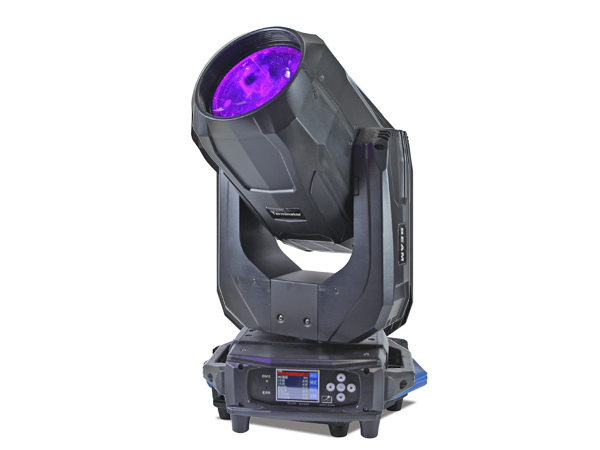

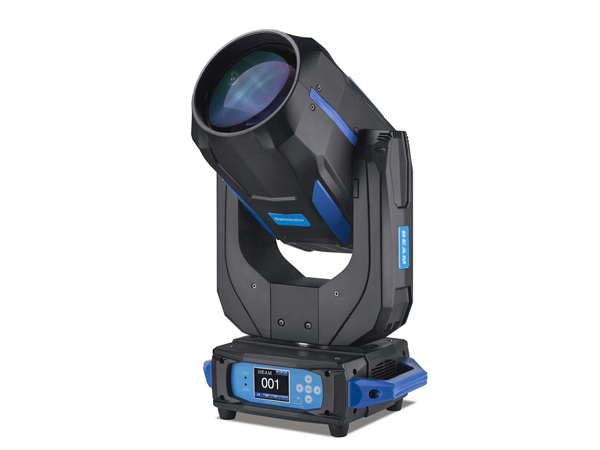

·This is a high power high brightness 330W 16R Moving Head Supper Beam Light. This light is best used for the night bar, night club, event, and other entertainment places.
Features
·14 colors which equips imported color chips, color is very fresh;
·High power can reach 330W, powerful;
·0-100% linear dimmer;
·Supper beam light which the beam can reach far distance.
Technical Specifications
Light Sources
·Light source: 330W 16R lamp; or 260W/230W
·Lifespan of lamp: 2000h
·Color: pure white
Optics
·Beam angle: 1.8degree
·Static gobo wheel: 13 fixed gobos+open
·Color wheel: 13 color+open
·Prism: 16 and 24-face rotating prism
·Frost: 100% frost filter
·Dimmer: 0-100% linear dimmer
·Strobe: 1-25 times/second
Light Output
·Luminous flux: 4212 Lm
·Illuminance: 4295 Lux (5m 8°)
·Optimal projection distance: 4-30m
Movement
·Pan(X axis): 540°, 16 bit movement solution, optional automatic
·Tilt(Y axis): 270°, 16 bit movement solution, optional automatic
Control
·Control mode: DMX-512; Master/slave mode; Demo mode
·DMX channel: 18CH
·Display of control panel: LCD display+4 buttons
Power Supply
·Related voltage: AC100V-240V, 50/60Hz
·Related power: 400W
Construction
·Body dimension: 330Dx230Wx590Hmm
·Net weight: 17.5kg
·Shell color: black
·Shell material: ABS
Working Environment
·Working temperature: -25-40℃
·Cooling: Fan
·Protection rating: IP20
Equipment Optional Configuration
·Built-in battery: have the off-power setting ID address function
·Net work: artnet net work, can use the artnet signal control
Standard Configuration Spare Part List
·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)
·User manual: English version user manual
·Clamp bridge: 1 set clamp bridge
Optional Configuration Spare Parts List
·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)
·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)
Package
·Carton board package size: 460*460*590mm(1pcs/carton)
·N.W/G.W/V.W: 17.5kg/19.5kg/25kg
Selling Maintain Spare Parts List
·Switching power supply: VG-SB330A-P
·LED lamp board: VG-SB330A-L
·Main board: VG-SB330A-M
·Drive board: VG-SB330A-D
