VG-VF750A
  • VG-VF750A
  • VG-VF750A
  • VG-VF750A
  • VG-VF750A
  • VG-VF750A
  • VG-VF750A
  • VG-VF750A
  • VG-VF750A
  • VG-VF750A
  • VG-VF750A

Model: VG-VF750A

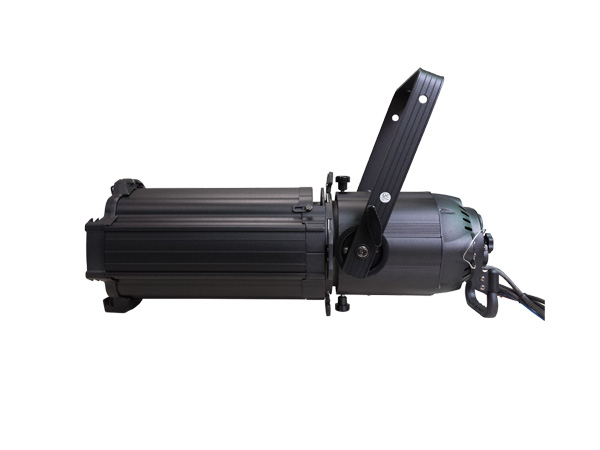

Name: 750W Profile Spot Light

Product Model: VG-VF750A

Commissioning Date: 2014-03

Sales Status: Selling

Reference Price:

·As a traditional profile spotlight, we use the firm material to make the shell of the light, and use high brightness Philips 750W lamp as the light source to make the light have high quality and wonderful effect. This light is very suitable for the studio, show and other entertainment place.

Features

·Equips HPL750W Lamps;

·19/26/36/50degree are optional;

·High quality lens;

·High CRI;

·Foam package.

Technical Specifications

Light Sources

·Light source: 220V HPL750W G9.5 halogen lamp

·Lifespan of lamp: 5000h

·Color: warm white, 3200K

Optics

·Beam angle: 19degree(26degree, 36degree, 50degree optional)

·Lens: Dichroic glass reflector and ETC lens

·Dimmer: 0-100% linear dimmer

·Strobe: 1-25 times/second

Light Output

·Center Beam illuminance:

26°: 4730Lux@5mtr; 1180Lux@10mtr; 520Lux@15mtr;

50°: 1020Lux@5mtr; 255Lux@10mtr; 110Lux@15mtr;

·Optic: High quality optical system

·Optimal projection distance: 4-30m

Power Supply

·Related voltage: AC100~120V/AC220V~240V, 50/60Hz

·Related power: 800W

·Fuse: 4A@120V/230V

Construction

·Dimension: 530*260*280mm

·Net weight: 6kg

·Shell color: black

·Shell material: Die-cast aluminium housing

Working Environment

·Working temperature: -25-40℃

·Cooling: Fan

·Protection rating: IP20

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

Optional Configuration Spare Parts List

·Gel frame: optional

·Gobo holder: optional

·Iris: optional

·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

Package

·Carton board box package size: 730*360*380(1pc/carton)

·N.W/G.W/V.W: 6kg/8kg

Selling Maintain Spare Parts List

·Switching power supply: VG-VF750A-P

·Lamp: VG-VF750A-L

·Main board: VG-VF750A -M
