Model: VG-PB200W-C-D

Name: DMX Zoom 200W CTO LED Fresnel Spot Light

Product Model: VG-PB200W-C-D
Commissioning Date: 2016-12-20
Sales Status: Selling
Reference Price:

·This television projector light equips high power 200W LED lamps as the light source, it’s energy saving. And it uses high efficiency optical lens, light soft. It’s a best choice for film and television performances, studio and other places.

Features

·The internal adopts full copper radiator large area, good heat dissipation, ensure the lifespan of the LED Lamps;

·Through efficient optical lenses, with special heat dissipation design, make the light is downy, small stray light, no glare, eyes more comfortable;

·Use the LED video projector scheme, the light energy saving 80%;

·Because of almost no infrared radiation, it has greatly improve work environment.

Technical Specifications

Light Sources

·LED: 1pc 200W COB LED Lamps

·Lifespan: 500,000h

·Color: from CW to WW, 3000K-6000K adjustable

Optics

·Beam angle: 15-60degree, DMX and Manual zoom

·Dimmer: 0-100% linear dimmer

·CRI: Ra>92

Light Output

·Luminous flux: 9775.3lm

·Illuminance: 2700 Lux (6m 15°)

·Optimal projection distance: 17-40m

Control

·Control mode: DMX-512; Auto run

·DMX channel: 5CH, 6CH

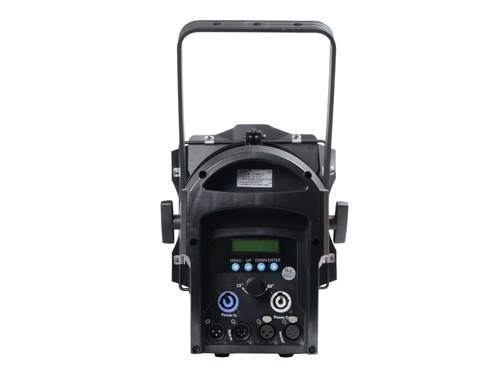

·Display of control panel: LCD display + 4 buttons

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 300W

Construction

·Body dimension: D455*W265*H292mm

·Net weight: 8.5kg

·Shell color: black

·Shell material: aluminium die casting

Working Environment

·Working temperature: -25-40℃

·Cooling: copper tube convector

·Protection rating: IP20

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

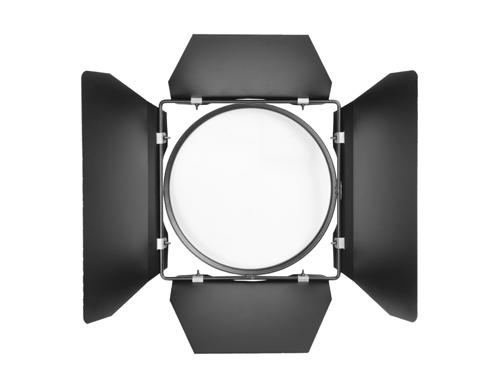

·Barn door: 1pc stand barn door

·User manual: English version user manual

Optional Configuration Spare Parts List

·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

·Stand: 1.5m hand change stand, 2.4-4m hand change stand

Package

·Carton board package size: 510*320*370mm(1pc/carton)

·N.W/G.W/V.W: 8.5kg/8.8kg/13kg

·Flight case package size: 745*640*650(4pcs/flight case)

·Net weight of flight case: 30kg

·N.W/G.W/V.W: 34kg/64kg/63kg

·Flight case package size: 985*640*650(4pcs/flight case)(with clamps space)

·Net weight of flight case: 32kg

·N.W/G.W/V.W: 34kg/66kg/82kg

·Flight case package size: 1100*640*650(6pcs/flight case)

·Net weight of flight case: 34kg

·N.W/G.W/V.W: 51kg/85kg/92kg

Selling Maintain Spare Parts List

·Switching power supply: VG-PB200W-C-D-P

·LED lamp board: VG-PB200W-C -D-L

·Main board: VG-PB200W-C-D-M

·Drive board: VG-PB200W-C-D-D
