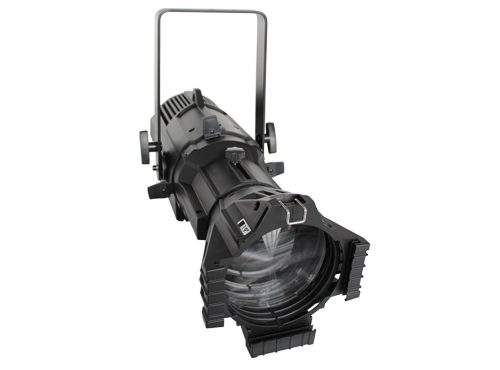

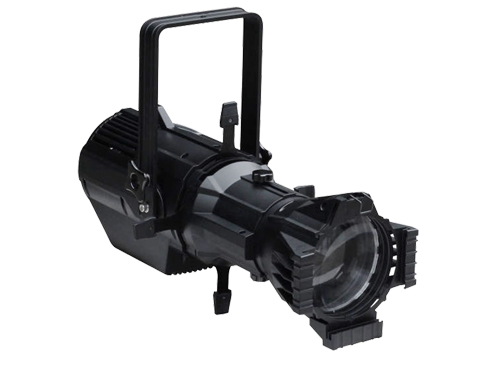

·This is a professional LED Fixed Lens Color Temperature Adjustable Profile Spot Light. It uses high CRI and high power LED integrated lamp as the light emitting element, adopting the United State ETC optical lenses. This light is saving energy and protecting environment, pure color temperature, it is a very suitable substitute of the traditional 750 profile light.

Features

·High light efficiency, good color rendering, low glare value;

·Long lifespan, energy conservation, environmental protection;

·Linear dimmer by DMX signal, smoothly 0-100%;

·Silent, owns good cooling system by copper radiation and fan(within 18db);

·High CRI more than 90Ra.

Technical Specifications

Light Sources

·LED: 1pc 200W(max output 180W) RGBW 4in1 COB LED Lamp

·Lifespan: 50000h

·Color: RGBW colorful

Optics

·Beam angle: 19degree/26degree/36degree/50degree are optional, fixed lens

·Dimmer: 0-100% linear dimmer

·Strobe: 1-25 times/second

Light Output

·Luminous flux: 28200lm

·Illuminance: 25200 Lux (2m 19°3200K)

·Optimal projection distance: 4-30m

Control

·Control mode: DMX-512; Master/slave; Demo

·DMX channel: 9CH

·Display of control panel: LCD display + 4 buttons

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 200W

Construction

·Body dimension: D645*W260*H250mm

·Net weight: 7.5kg

·Shell color: black/white

·Shell material: ABS

Working Environment

·Working temperature: -25-40℃

·Cooling: mute fan, Aluminum radiator

·Protection rating: IP20

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

·Clamp bridge: 1 set clamp bridge

Equipment Optional Configuration

·Gobo clip: 1pc gobo clip

·Gobo: steel gobo, Gobo size: inner diameter 60mm, outer diameter71.6mm

·Barn doors: 1 set barn doors

·Colored paper clip: 1 set colored paper

Package

·Carton board box package size: 800*350*340(1pc/carton)

·N.W/G.W/V.W: 7.5kg/8.8kg/20kg

·Carton board box package size: 810*670*370(2pcs/carton)

·N.W/G.W/V.W: 15kg/17kg/40kg

Selling Maintain Spare Parts List

·Switching power supply: VG-LVF150C-P

·LED lamp board: VG-LVF150C-L

·Main board: VG-LVF150C-M

·Drive board: VG-LVF150C-D
