VG-LM300C
  • VG-LM300C
  • VG-LM300C
  • VG-LM300C
  • VG-LM300C

Model: VG-LM300C

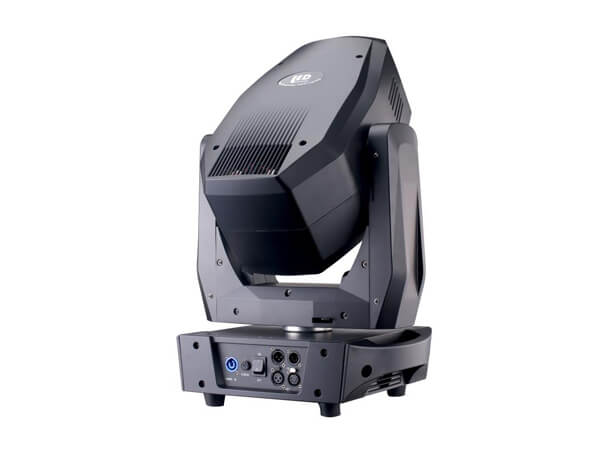

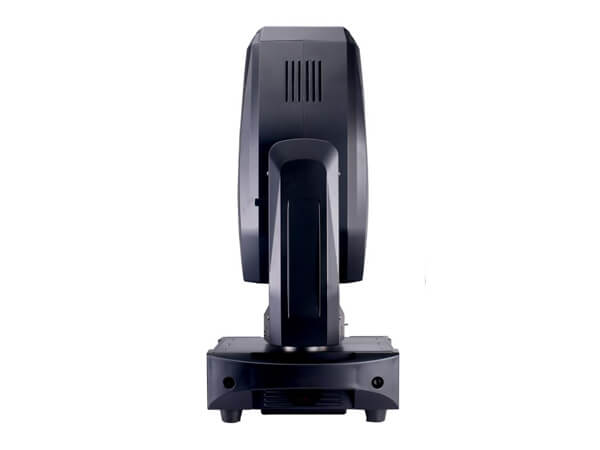

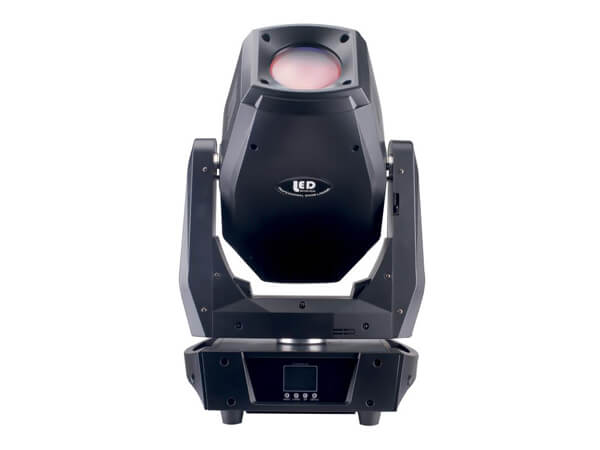

Name: 300W CMY LED Moving Head Spot Beam Wash Light

Product Model: VG-LM300C
Commissioning Date: 2018-05-17
Sales Status: Stopped, choose VG-LM330CMY as the replacement
Reference Price:

·For the high power LED Spot Light need for the stage performance, we have designed this 300W LED Moving Head Spot Beam Wash Light. Its brightness is very near the traditional 350W Moving Head Spot Beam Wash Light, it’s powerful and wonderful. This is your best choice for the stage lighting performance.

Features

·The output of the 300W is equal to 350W lamp;

·Equipped LCD display, easy operate;

·Have the prism function and prism rotation function;

·DMX linear dimmer function;

·Built-in programs under the master and slave control mode;

·Pan and tilt revise the location automatically;

·0~100% linear dimmer, strobe speed adjustable.

Technical Specifications

Light Sources

·LED: 1pc 300W White led lamp

·Lifespan: 50000h

·Color: white light sources, change color by CMY

Optics

·Center beam angle: 11°

·Zoom range: 11-46°

·Static Gobo wheel: 7 gobos + open, with rotation and running water effect

·Rotation gobo wheel: 6 gobos + open

·Color wheel: 7 colors + blank, with half color effect

·Prism: 3 facet prism with bi-direction rotating

·Frost: With frost effect

·Focus: electronic

·Dimmer: 0-100% linear dimmer

·Strobe: 1-25 times/second

Light Output

·Illuminance: 45200lux@4m, 11°, 4760lux@4m, 46°

·Optimal projection distance: 3-30m

Movement

·Pan(X axis): 540°, fine adjust function

·Tilt(Y axis): 250°, fine adjust function

Control

·Control mode: DMX-512; Master/slave mode; Demo mode; Sound active

·DMX channel: 21CH, 26CH

·Display of control panel: LCD screen + 4 buttons, can adjust 180 degree to fit different installation position

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 450W

Construction

·Body dimension: 645Dx394Wx306Hmm

·Net weight: 20kg

·Shell color: black

·Shell material: ABS

Working Environment

·Working temperature: -25-40℃

·Cooling: Fan

·Protection rating: IP20

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

·Clamp bridge: 1 set clamp bridge

Optional Configuration Spare Parts List

·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

Package

Carton: 70*42*43cm(1pcs/carton)

N.W/G.W/V.W: 20kg/24kg/25kg

Selling Maintain Spare Parts List

·Switching power supply: VG-LM300C-P

·LED lamp board: VG-LM300C-L

·Main board: VG-LM300C-M

·Drive board: VG-LM300C-D
