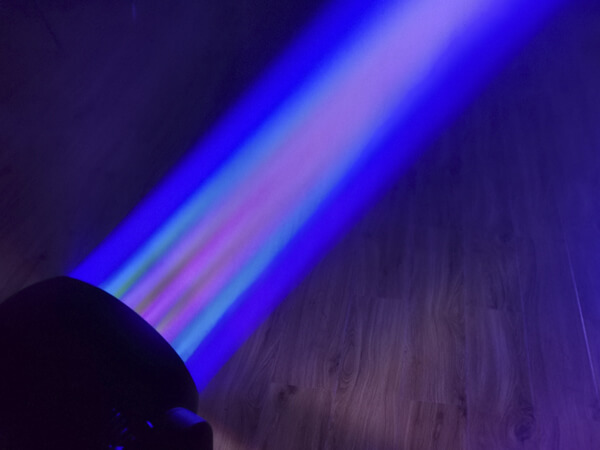

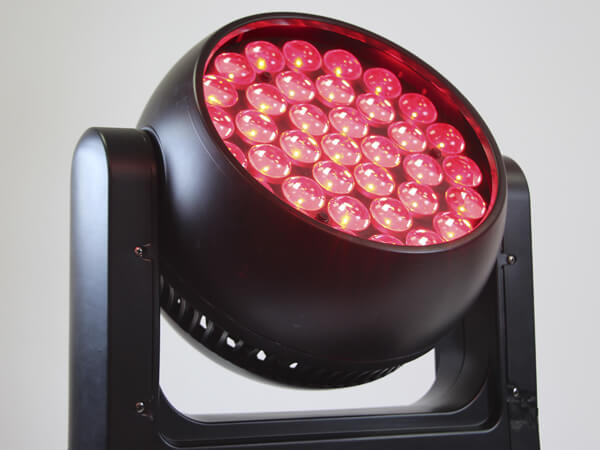

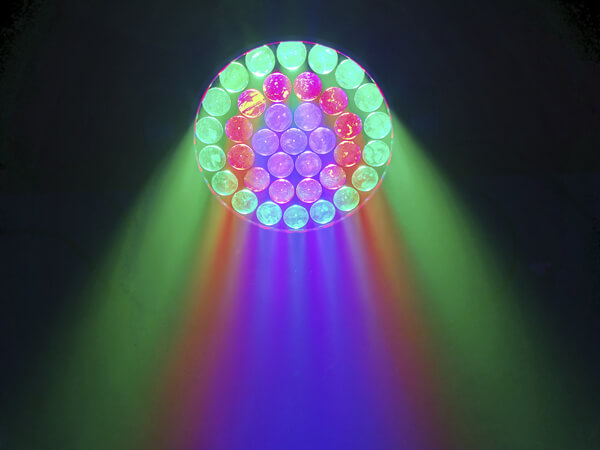

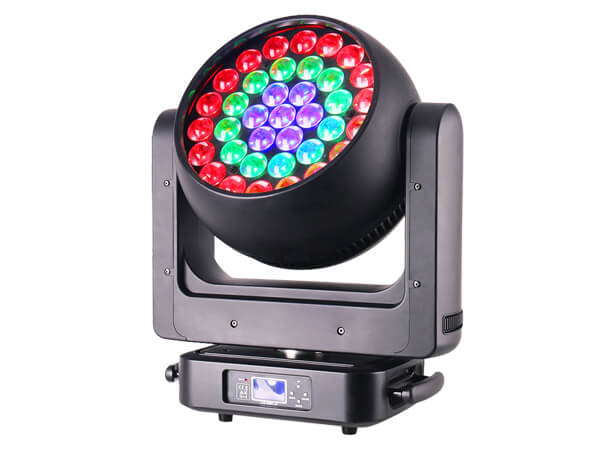

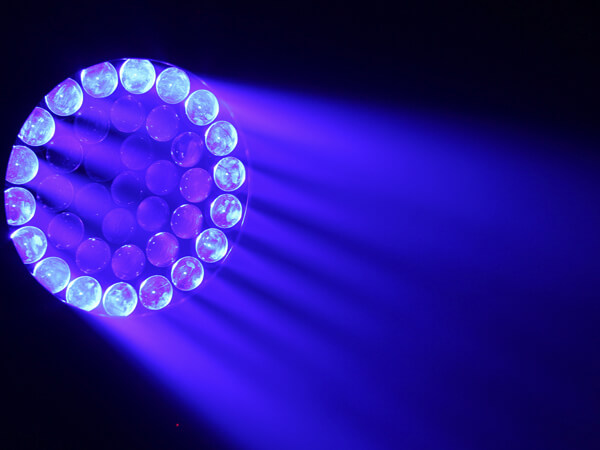

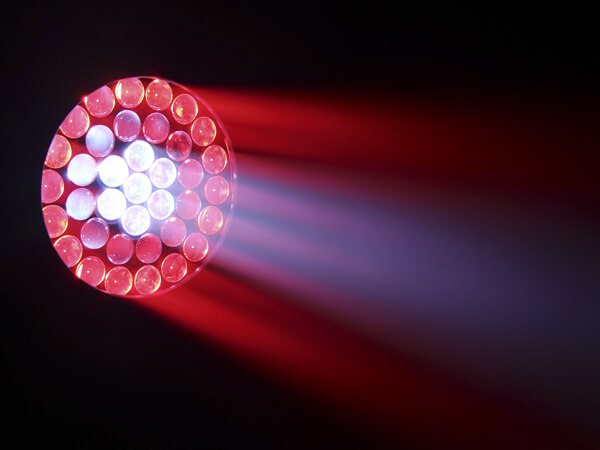

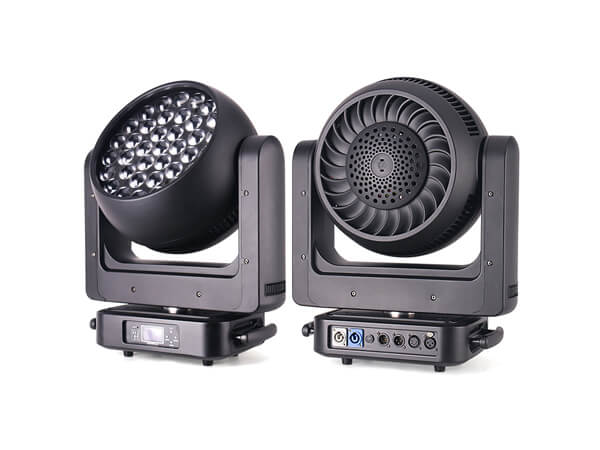

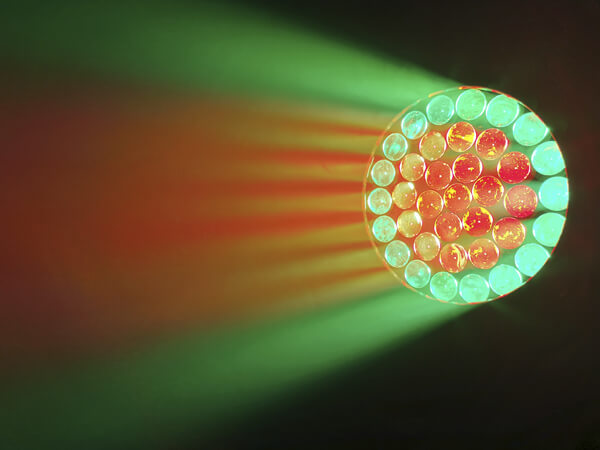

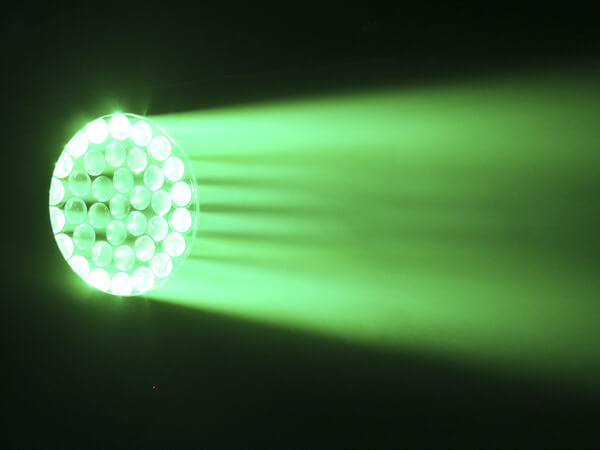

·This is a high powerful 37pcs 20W LED Moving Head Zoom Light, the zoom range can from 10degree to 60degree. It can be a beam light, and a moving head wash light. The light is very suitable for the stage performance, theatre, TV, studio, rental and other entertainment places.
Features
·Extremely small, fast and powerful LED Moving Head Beam Zoom Light;
·Wide zoom range from 10degree to 60degree;
·Great built-in lighting shows programs under master/slave mode;
·Blue LCD display for easy navigation;
·Perfect for stage, theatre, TV, studio, rental and discotheques.
Technical Specifications
Light Sources
·LED: 37pcs 20W 4in1 LED lamps
·Lifespan: 50, 000h
·Color: RGBW 4in1 colorful
Optics
·Beam angle: 10-60degree
·Dimmer: 0-100% linear dimmer
·Strobe: 1-25 times/second
Light Output
·Optimal projection distance: 50-180m
Movement
·Pan(X axis): 540degree
·Tilt(Y axis): 270degree
Control
·Control mode: DMX-512; Mater/slave mode; Demo mode
·DMX channel: 14CH, 26CH
·Display of control panel: LCD display, four buttons
Power Supply
·Related voltage: AC100V-240V, 50/60Hz
·Related power: 750W
·Light output: 700W
Construction
·Body dimension: D402*W377*H520mm
·Net weight: 13kg
·Shell color: black
·Shell material: ABS
Working Environment
·Working temperature: -25-40℃
·Cooling: Fan
·Protection rating: IP20
Equipment Optional Configuration
·Built-in battery: have the off-power setting ID address function
·Net work: artnet net work, can use the artnet signal control
Standard Configuration Spare Part List
·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)
·User manual: English version user manual
·Clamp bridge: 1 set clamp bridge
Optional Configuration Spare Parts List
·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)
·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)
Package
·Carton board box package: 490*350*630mm(1pc/carton)
·N.W/G.W: 19kg/22kg
·Flight case package: 910*610*710mm(2pc/case)[f:20-05-25]
·N.W/G.W: 26kg/63kg
Selling Maintain Spare Parts List
·Switching power supply: Swift 3720Z-P
·LED lamp board: Swift 3720Z-L
·Main board: Swift 3720Z-M
·Drive board: Swift 3720Z-D
