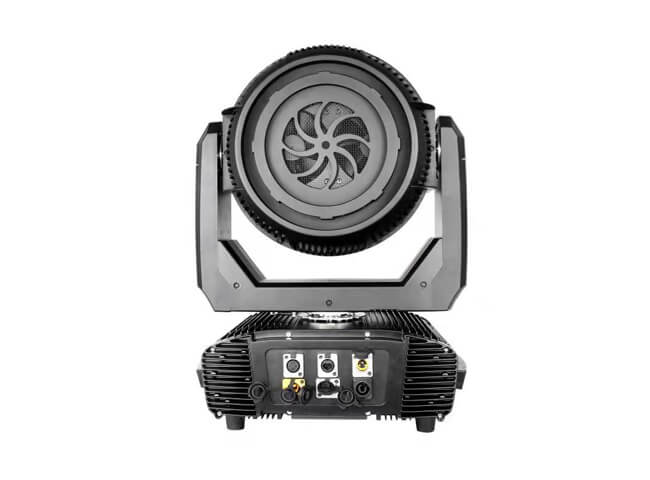

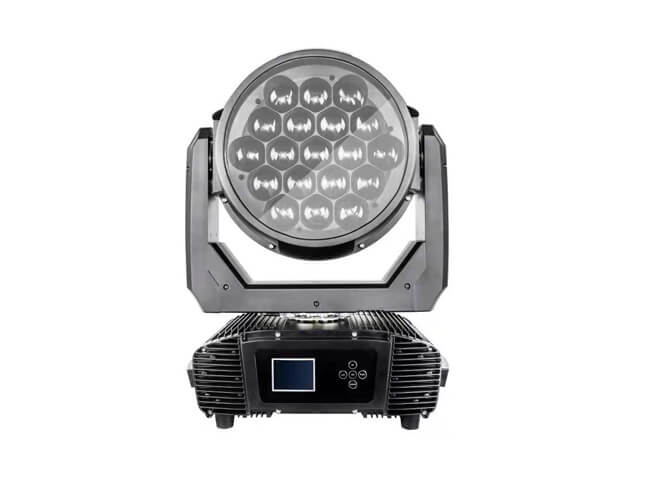

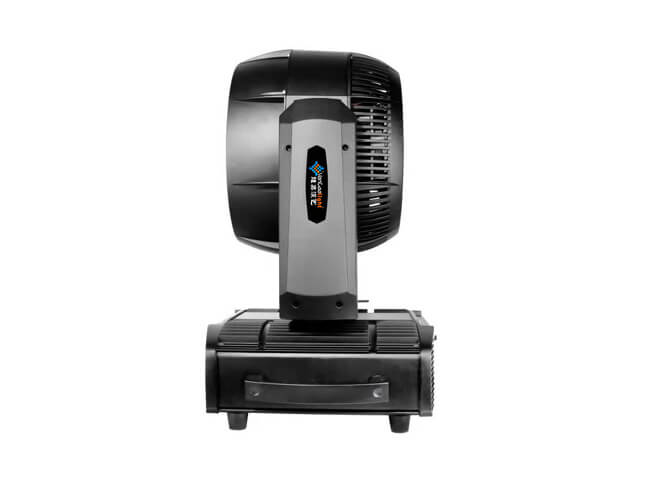

·This is a high powerful 19pcs 40W Outdoor LED Moving Head Zoom Light, the zoom range can from 5degree to 60degree. It can be a beam light, and a moving head wash light. The light is very suitable for the stage performance, theatre, TV, studio, rental and other entertainment places.

Features

·Extremely small, fast and powerful LED Moving Head Beam Zoom Light;

·Wide zoom range from 5degree to 60degree;

·Great built-in lighting shows programs under master/slave mode;

·Blue LCD display for easy navigation;

·Perfect for stage, theatre, TV, studio, rental and discotheques.

Technical Specifications

Light Sources

·LED: 19pcs 40W OSRAM LE RTDUW S2WN LED Lamps

·Lifespan: 50, 000h

·Color: RGBW 4in1 colorful

Optics

·Beam angle: 5-60degree

·Dimmer: 0-100% linear dimmer

·Strobe: 1-25 times/second

Light Output

·Luminous flux: 12000lm

·Optimal projection distance: 4-50m

Movement

·Pan(X axis): 540degree(8/16bit accuracy scan)

·Tilt(Y axis): 270degree(8/16bit accuracy scan)

·Motor type: 3 phase

·Advanced smooth/fast/quiet high-precision scanning system, with automatic error correction reset function, horizontal/vertical slide control function

·Pan/tilt reversible, adjustable

Control

·Control mode: DMX-512; Mater/slave mode; RDM; Demo mode; Art-net control(optional)

·DMX channel: 14CH, 20CH, 94CH, 101CH

·Display of control panel: LCD display, four buttons

·7 built-in bootstrap programs

·DMX memory and editing

·RDM control

·Built-in imported DMX wireless receiver (optional)

·Input signal isolation protection function, ensure signal transmission stability, not interfered

·Waterproof RJ45 Ethernet connector input/output (optional)

·Waterproof signal cable input and output

Color

·Each lamp bead is individually controllable ;

·RGBW infinite color mixing;

·Light spot uniformity, pure color mix, delicate, full;

·Built-in 33 color macro function effects;

·2800K-3200K tungsten lamp simulation effect;

·3200K-8000K linear color temperature adjustment;

·A variety of preset dynamic virtual pattern effects, bidirectional rotation, adjustable speed;

·Multiple preset static virtual pattern effects;

·Dynamic/static virtual pattern can choose foreground color, color temperature is adjustable, adjustable light;

·Dynamic/static virtual pattern can choose the background color, color temperature is adjustable, adjustable light.

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 960W

Construction

·Body dimension: D325*W444*H591mm

·Net weight: 24kg

·Shell color: black

·Shell material: ABS

Working Environment

·Working temperature: -25-40℃

·Cooling: Fan

·Protection rating: IP65

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

·Clamp bridge: 1 set clamp bridge

Optional Configuration Spare Parts List

·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

Package

·Carton board box package: 353*650*700mm(1pc/carton)

·N.W/G.W: 24kg/27kg

Selling Maintain Spare Parts List

·Switching power supply: Swift O1940Z-P

·LED lamp board: Swift O1940Z-L

·Main board: Swift O1940Z-M
