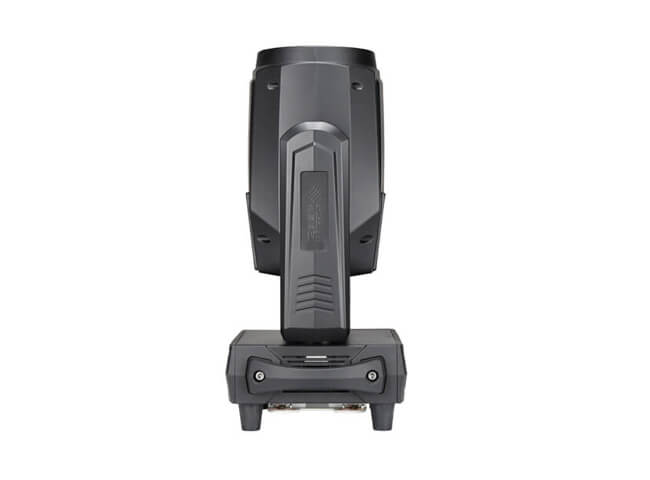

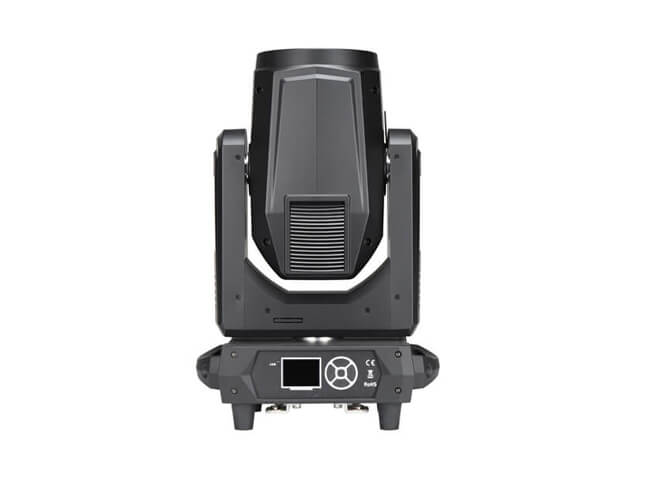

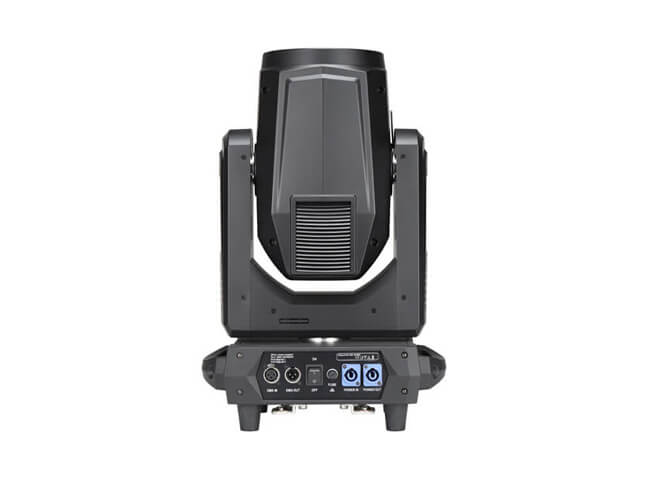

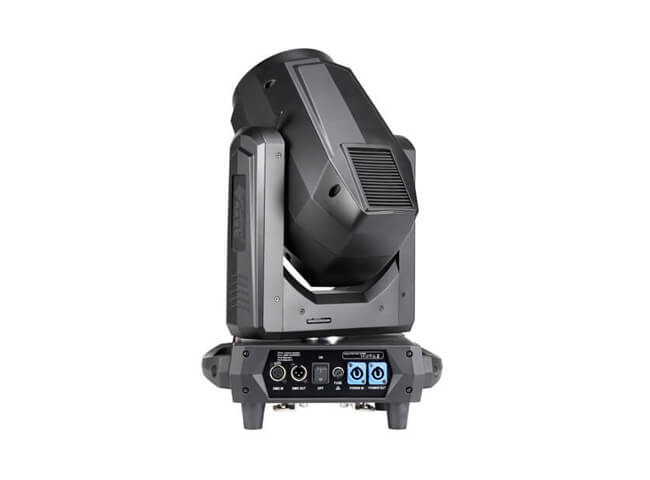

·This is a high power high brightness 311W beam Moving Head Light which has a very unique appearance. It equips OSRAM Sirius 311W high brightness lamp. The light has very brightness output, and have two prisms which can make very beautiful beam effect. This light is best used for the night bar, night club, event, and other entertainment places.

Features

·14 colors on the color wheel which equips imported color chips, color is very fresh;

·High power can reach 310W, very powerful;

·16bit 0-100% linear dimmer;

·1.9degree near parallel beam output, have strong penetrating power.

Technical Specifications

Light Sources

·Light source: 1pc OSRAM SIRIUS HRI 311W lamp

·Lifespan of lamp: 1500hours

·Color temperature of lamp: 7500K

Optics

·Beam angle: 0-3degree

·Color system: 1pc color wheel with 14 color + white

·Color location: Holzer, magnet positioning and automatic error correction at any angle function;

·Fixed Gobo wheel: 15 gobos + white;

·Prism effect: 1pc 8 facet Prism, 1pc 16 facet Prism;

·Focus: equips high precision glass lens, electronic linear HD regulation;

·Atomization: independent fog effects,

Movement

·Pan(Horizontal): 540 °(16bit precision scanning) electronic error correction;

·Tilt(Vertical): 270 °(16bit precision scanning) electronic error correction;

Control

·Dimming: 0-100% electronic lighting, electronic strobe and a variable speed strobe effects, supports Flash macro function;

·DMX channel: 20CH

·Control mode: DMX-512, Demo mode, Manual

·Control panel: LCD display + 4 buttons

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 350W

·Ballast: electronic ballast

·Power supply: equips switching power supply for AC and DC

Construction

·Body dimension: D523*W338*H512mm

·Net weight: 17.8kg

·Shell color: black

·Housing material: ABS, fire-proofing and anti-impact materials

Special feature

·Power off setting: built-in battery, could operate LCD screen without connecting power supply;

·Safety circuit: Overheat protection

Working Environment

·Working temperature: -25-40℃

·Cooling system: adopt the wind direction drainage and temperature intelligent monitoring technology. According to the temperature in different position of the lamp, it can automatically drive the cooling fan in different parts of the lamp and effectively cool the lamp parts;·Protection rating: IP20

Spare Parts

·Cable: 1set DMX in and DMX out signal cable, and 1set Power in and Power out power cable with local style plug [standard configuration]

·User manual: English version user manual

Package information

·Carton board box package size: 470*470*580mm(1pc/carton)

·N.W/G.W/V.W: 18.9kg/21kg/26kg
