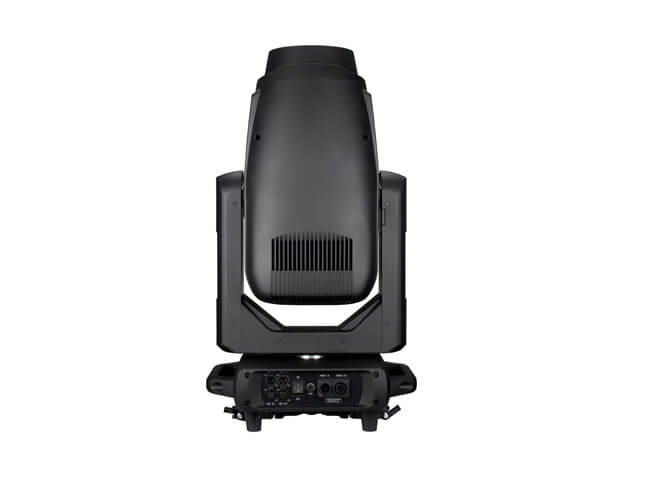

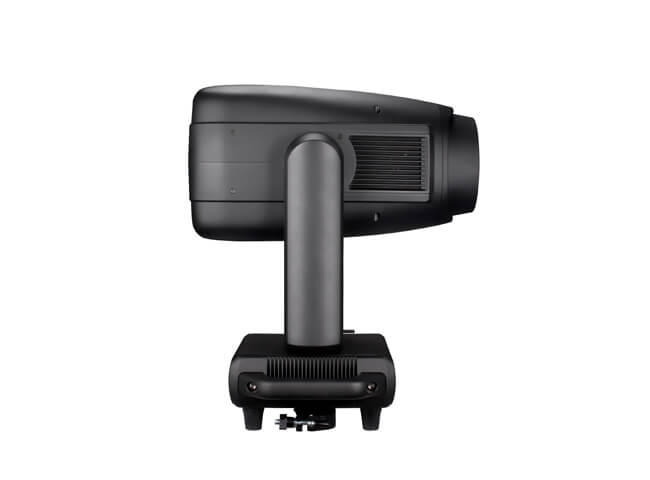

·This is a 1000W Framing LED moving head Spot Light. It has a novel design and compact structure. It can be used as a very professional moving head light. It has an independent atomization effect, electric focus, and electric linearity. Magnification function, soft light, high brightness, can meet high-quality lighting needs. This product can be widely used in professional stage performances, studios, TV stations, theaters and other entertainment venues.

Features

·Built-in CMY color system, every color can be mixed for your stage;

·There are 8pcs smooth motors for up, down, right and left of the different framing position;

·Double color wheels which very easy to adjust the simple colors;

·Adjustable pan/tilt movement speed

·Automatic pan/tilt correction

·3-pin and 5-pin XLR connector input/output

Technical Specifications

Light Source

·LEDs: 1pc 1000W High Brightness LED module

·Color: white light source, change the color through the color wheel and CMY

·Color temperature: 7000K

·Service life: 20000h

Optical System

·Beam angle: 5°-50°(spot to flood)

·Color wheel: 7 colors + 1 CRI92 white chip

·Color system: electric CMY, mixing different colors

·CTO: 2500-6500K, linear adjustment

·Framing system: electronic framing for four sides, ultra noise and high speed

Electromechanical Effects

·Cutting assembly: components 8 motors + 4 cutting blades, 120degree rotation angle

·Fixed pattern disk: 8 patterns + 1 blank

·Rotating pattern disk: 7 interchangeable patterns + 1 blank

·Spatial effects: water ripple and flame effects via pattern disk coordination.

·Dual atomization: soft light spot with linear scaling (light/heavy mist modes).

·Prism system: 4 prisms + gradient prism for multi-dimensional light diffusion.

·CRI system: equipped with high-CRI filter for enhanced color accuracy

·Iris: mechanical linear iris for adjustable beam intensity

·Focusing system: high-precision glass optical lens with electronic linear fine-tuning with smooth and stable focus adjustment

·Dimmer: 0-100% lindear dimmer

·Strobe: 1-20 flash/s

Movement

·Pan: 540°, with pan fine function

·Tilt: 270°, with tilt fine function

Control and Programming

·Control mode: DMX-512; RDM; Master/slave; Auto-run

·DMX channel: 35CH

·Menu operation: resistive touch screen, convenient and fast

·Power failure protection: Built-in battery enables LCD operation without main power

Electrical Specification

·Input voltage range: AC100-240V, 50/60Hz

·Power consumption: 1200W

·Power connection: powercon in and out

·DMX connection: XRL 3pin and 5pin

Mechanical Specification

·Light size: 730D*400W*270Hmm

·Weight: 29kg

·Material: ABS

·Appearance color: black

Using Environment

·IP rating: IP20

·Working temperature: -25-40℃

·Cool system: Electronically controlled fan speed via temperature regulation

·Overheat protection: independent power supply for LED/mainboard.

Standard Accessories Light

·1pc DMX cable

·1pc power cable

·1pc English version user manual

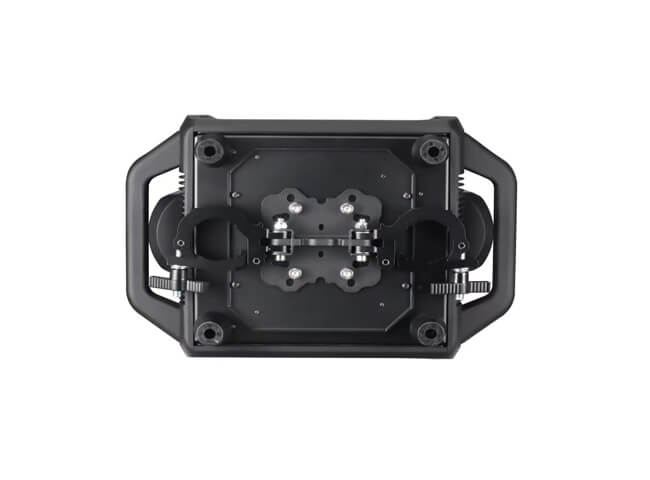

·2pc clamp bridge

Package information

·Carton package size: 830*510*390mm(1pc/carton)[f:25-06-02]

·N.W/G.W: 29kg/33kg

·Flight case size: 990*560*790mm(2pcs/case) [f:25-02-17]

·Net weight of case: 40kgs

·N.W/G.W: 56kg/96kg
