Model: VG-LVF200A

Name: 200W LED Fixed Lens Profile Spot Light

Product Model: VG-LVF200A

Commissioning Date: 2015-12-25

Sales Status: Selling

Reference Price:

·This is a professional LED Fixed Lens Profile Spot Light. It uses high CRI and high power LED integrated lamp (COB lamp) as the light emitting element, adopting the United State ETC optical lenses. This light is saving energy and protecting environment, pure color temperature, it is a very suitable substitute of the traditional 750 profile light.

Features

·High light efficiency, good color rendering, low glare value;

·Long lifespan, energy conservation, environmental protection;

·Linear dimmer by DMX signal, smoothly 0-100%;

·Silent, owns good cooling system by copper radiation and fan(within 18db);

·High CRI more than 90Ra.

Technical Specifications

Light Sources

·LED: 1pc white 200W COB LED Lamp, 3200K-6500K optional

·Lifespan: 500,000h

·Color: CW/WW

Optics

·Beam angle: 19degree(26degree/36degree/50degree optional), fixed lens

·Gobo clip: 1pc gobo clip with steel gobo optional

·Dimmer: 0-100% linear dimmer

·Strobe: 1-25 times/second

Light Output

·Luminous flux: 25200 Lm

·Illuminance: 25200 Lux (2m 19° 3200K)

·Optimal projection distance: 4-16m

Movement

·Focus: Manual

·Gobo clip: Manual

Control

·Control mode: DMX-512; Demo; Master/slave

·DMX channel: 3CH

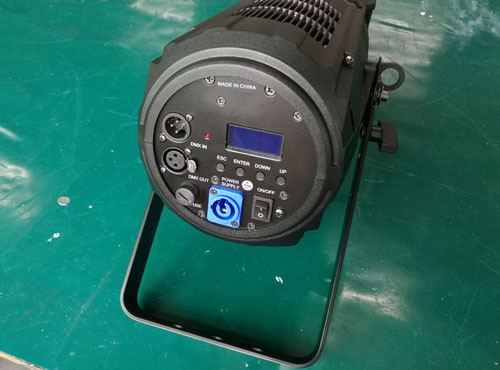

·Display of control panel: digital LCD display

·DMX In/Out: 3P-XLR DMX In/Out, DMX 512

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 250W

Construction

·Body dimension: D640*W250*H270mm(included handle)

·Net weight: 4.8kg

·Shell color: black/white

·Shell material: ABS(fire proofing, grease proofing, high temperature resistance)

Working Environment

·Working temperature: -25-40℃

·Cooling: Copper radiation and Fan

·Protection rating: IP20

Equipment Optional Configuration

·Gobo clip: 1pc gobo clip

·Gobo: steel gobo

·Barn doors: 1 set barn doors

·Colored paper clip: 1 set colored paper

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

·Clamp bridge: 1 set clamp bridge

Optional Configuration Spare Parts List

·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

Package

·Carton board box package size: 700*320*330(1pc/carton)

·N.W/G.W/V.W: 6.4kg/9kg/15kg

·Flight case package size: 830*640*460mm(2pcs/case) [c: 18-08-02]

·Net weight of case: 19kgs

·N.W/G.W/V.W: 14kg/33kg/49kg

Selling Maintain Spare Parts List

·Iris: VG-LVF200A-Iris

·Gobo frame: VG-LVF200A-GF

·Color paper frame: VG-LVF200A-CF

·Switching power supply: VG-LVF200A-P

·LED lamp board: VG-LVF200A -L

·Main board: VG-LVF200A-M

·Drive board: VG-LVF200A-D

Related Products

Model: VG-LVF200A

Name: 200W LED Fixed Lens Profile Spot Light

Product Model: VG-LVF200A

Commissioning Date: 2015-12-25

Sales Status: Selling

Reference Price:

  • VG-LVF200A
  • VG-LVF200A
  • VG-LVF200A
  • VG-LVF200A
  • VG-LVF200A
  • VG-LVF200A
  • VG-LVF200A
  • VG-LVF200A
  • VG-LVF200A
  • VG-LVF200A
  • VG-LVF200A
  • VG-LVF200A
Technical Specification

·This is a professional LED Fixed Lens Profile Spot Light. It uses high CRI and high power LED integrated lamp (COB lamp) as the light emitting element, adopting the United State ETC optical lenses. This light is saving energy and protecting environment, pure color temperature, it is a very suitable substitute of the traditional 750 profile light.

Features

·High light efficiency, good color rendering, low glare value;

·Long lifespan, energy conservation, environmental protection;

·Linear dimmer by DMX signal, smoothly 0-100%;

·Silent, owns good cooling system by copper radiation and fan(within 18db);

·High CRI more than 90Ra.

Technical Specifications

Light Sources

·LED: 1pc white 200W COB LED Lamp, 3200K-6500K optional

·Lifespan: 500,000h

·Color: CW/WW

Optics

·Beam angle: 19degree(26degree/36degree/50degree optional), fixed lens

·Gobo clip: 1pc gobo clip with steel gobo optional

·Dimmer: 0-100% linear dimmer

·Strobe: 1-25 times/second

Light Output

·Luminous flux: 25200 Lm

·Illuminance: 25200 Lux (2m 19° 3200K)

·Optimal projection distance: 4-16m

Movement

·Focus: Manual

·Gobo clip: Manual

Control

·Control mode: DMX-512; Demo; Master/slave

·DMX channel: 3CH

·Display of control panel: digital LCD display

·DMX In/Out: 3P-XLR DMX In/Out, DMX 512

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 250W

Construction

·Body dimension: D640*W250*H270mm(included handle)

·Net weight: 4.8kg

·Shell color: black/white

·Shell material: ABS(fire proofing, grease proofing, high temperature resistance)

Working Environment

·Working temperature: -25-40℃

·Cooling: Copper radiation and Fan

·Protection rating: IP20

Equipment Optional Configuration

·Gobo clip: 1pc gobo clip

·Gobo: steel gobo

·Barn doors: 1 set barn doors

·Colored paper clip: 1 set colored paper

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

·Clamp bridge: 1 set clamp bridge

Optional Configuration Spare Parts List

·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

Package

·Carton board box package size: 700*320*330(1pc/carton)

·N.W/G.W/V.W: 6.4kg/9kg/15kg

·Flight case package size: 830*640*460mm(2pcs/case) [c: 18-08-02]

·Net weight of case: 19kgs

·N.W/G.W/V.W: 14kg/33kg/49kg

Selling Maintain Spare Parts List

·Iris: VG-LVF200A-Iris

·Gobo frame: VG-LVF200A-GF

·Color paper frame: VG-LVF200A-CF

·Switching power supply: VG-LVF200A-P

·LED lamp board: VG-LVF200A -L

·Main board: VG-LVF200A-M

·Drive board: VG-LVF200A-D

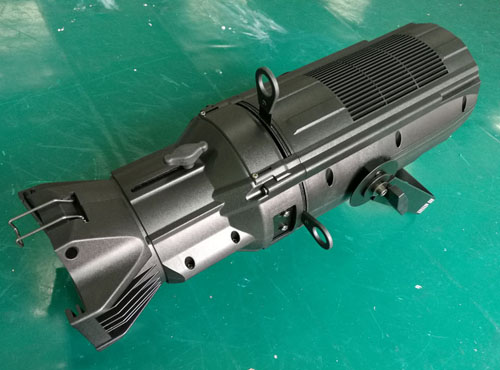

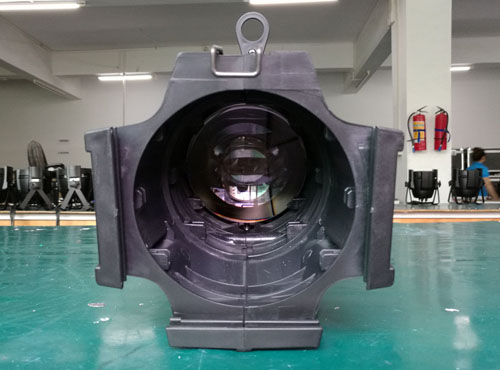

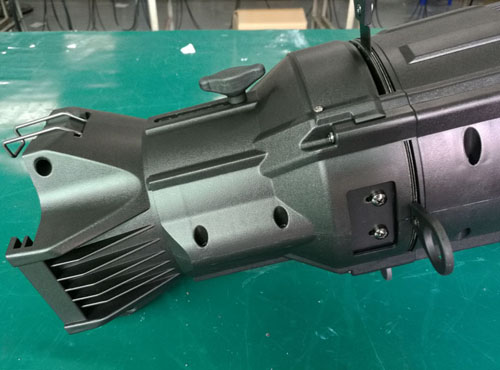

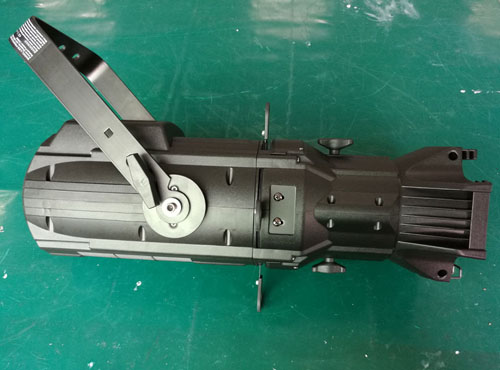

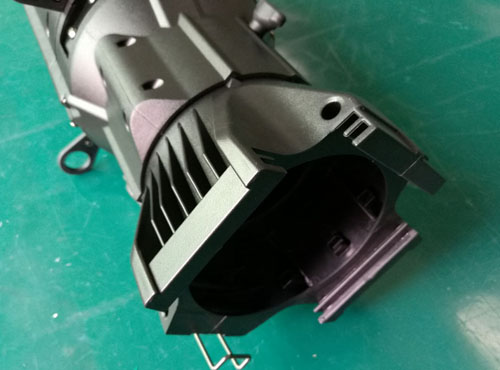

Details Pictures
