Model: VG-PB200D

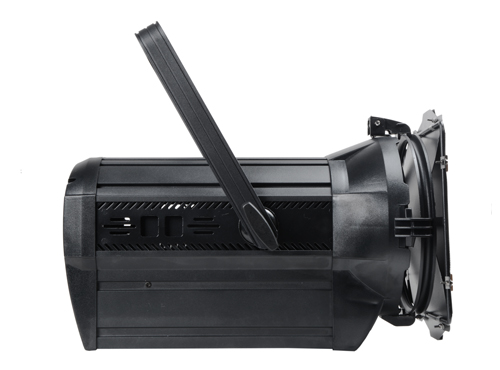

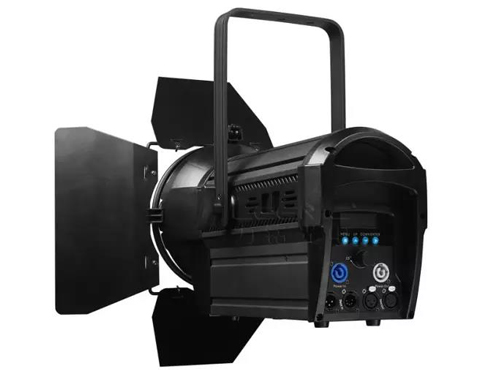

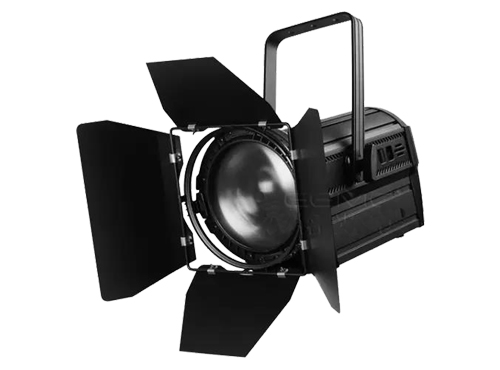

Name: 200W RGBW LED Fresnel Spot Light

Product Model: VG-PB200D

Commissioning Date: 2017-09-30

Sales Status: Selling

Reference Price:

This television projector light equips high power 200W LED lamps as the light source, it’s energy saving. And it uses high efficiency optical lens, light soft. It’s a best choice for film and television performances, studio and other places.

Features

·The internal adopts full copper radiator large area, good heat dissipation, ensure the lifespan of the LED Lamps;

·Through efficient optical lenses, with special heat dissipation design, make the light is downy, small stray light, no glare, eyes more comfortable;

·Use the LED video projector scheme, the light energy saving 80%;

·Because of almost no infrared radiation, it has greatly improve work environment.

Technical Specifications

Light Sources

·LED: 1pc 200W RGBW 4in1 COB LED Lamps

·Lifespan: 500,000h

·Color: RGBW color mixing

Optics

·Beam angle: 15-60degree, Manual zoom

·Dimmer: 0-100% linear dimmer

Light Output

·Optimal projection distance: 5-30m

Control

·Control mode: DMX-512; Auto run

·DMX channel: 9CH

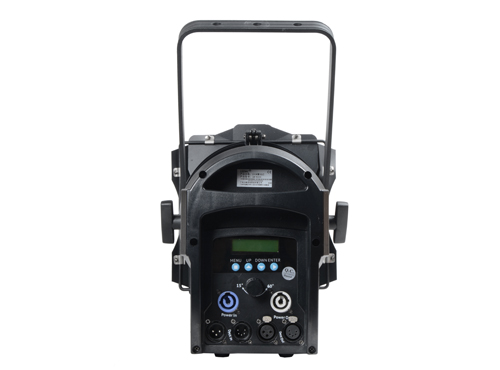

·Display of control panel: LCD display + 4 buttons

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 220W

Construction

·Body dimension: D455*W265*H292mm

·Net weight: 8kg

·Shell color: black/white

·Shell material: aluminium die casting

Working Environment

·Working temperature: -25-40℃

·Cooling: copper tube convector

·Protection rating: IP20

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

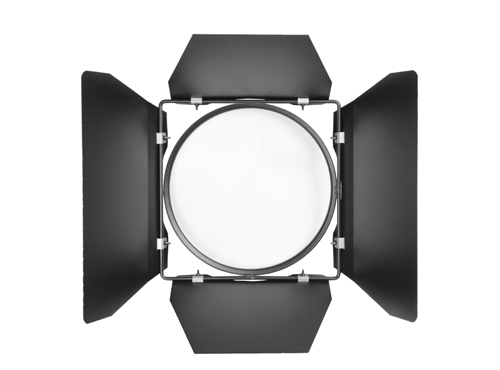

·Barn door: 1pc stand barn door

·User manual: English version user manual

Optional Configuration Spare Parts List

·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

·Stand: 1.5m hand change stand, 2.4-4m hand change stand

Package

·Carton board package size: 510*320*370mm(1pc/carton)

·N.W/G.W/V.W: 8.5kg/8.8kg/13kg

·Flight case package size: 745*640*650(4pcs/flight case)

·Net weight of flight case: 30kg

·N.W/G.W/V.W: 34kg/64kg/63kg

·Flight case package size: 985*640*650(4pcs/flight case)(with clamps space)

·Net weight of flight case: 32kg

·N.W/G.W/V.W: 34kg/66kg/82kg

·Flight case package size: 1120*920*560(6pcs/flight case, oversized)不带灯勾位

·Net weight of flight case: 37kg

·N.W/G.W/V.W: 51kg/87kg/116kg

·Flight case package size: 1120*920*740(6pcs/flight case, oversized)(with clamps space)

·Net weight of flight case: 43kg

·N.W/G.W/V.W: 51kg/94kg/151kg

Selling Maintain Spare Parts List

·Switching power supply: VG-PB200D-P

·LED lamp board: VG-PB200D-L

·Main board: VG-PB200D-M

·Drive board: VG-PB200D-D
Related Products

Model: VG-PB200D

Name: 200W RGBW LED Fresnel Spot Light

Product Model: VG-PB200D

Commissioning Date: 2017-09-30

Sales Status: Selling

Reference Price:

  • VG-PB200D
  • VG-PB200D
  • VG-PB200D
  • VG-PB200D
  • VG-PB200D
  • VG-PB200D
  • VG-PB200D
  • VG-PB200D
  • VG-PB200D
  • VG-PB200D
  • VG-PB200D
  • VG-PB200D
  • VG-PB200D
  • VG-PB200D
Technical Specification

This television projector light equips high power 200W LED lamps as the light source, it’s energy saving. And it uses high efficiency optical lens, light soft. It’s a best choice for film and television performances, studio and other places.

Features

·The internal adopts full copper radiator large area, good heat dissipation, ensure the lifespan of the LED Lamps;

·Through efficient optical lenses, with special heat dissipation design, make the light is downy, small stray light, no glare, eyes more comfortable;

·Use the LED video projector scheme, the light energy saving 80%;

·Because of almost no infrared radiation, it has greatly improve work environment.

Technical Specifications

Light Sources

·LED: 1pc 200W RGBW 4in1 COB LED Lamps

·Lifespan: 500,000h

·Color: RGBW color mixing

Optics

·Beam angle: 15-60degree, Manual zoom

·Dimmer: 0-100% linear dimmer

Light Output

·Optimal projection distance: 5-30m

Control

·Control mode: DMX-512; Auto run

·DMX channel: 9CH

·Display of control panel: LCD display + 4 buttons

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 220W

Construction

·Body dimension: D455*W265*H292mm

·Net weight: 8kg

·Shell color: black/white

·Shell material: aluminium die casting

Working Environment

·Working temperature: -25-40℃

·Cooling: copper tube convector

·Protection rating: IP20

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·Barn door: 1pc stand barn door

·User manual: English version user manual

Optional Configuration Spare Parts List

·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

·Stand: 1.5m hand change stand, 2.4-4m hand change stand

Package

·Carton board package size: 510*320*370mm(1pc/carton)

·N.W/G.W/V.W: 8.5kg/8.8kg/13kg

·Flight case package size: 745*640*650(4pcs/flight case)

·Net weight of flight case: 30kg

·N.W/G.W/V.W: 34kg/64kg/63kg

·Flight case package size: 985*640*650(4pcs/flight case)(with clamps space)

·Net weight of flight case: 32kg

·N.W/G.W/V.W: 34kg/66kg/82kg

·Flight case package size: 1120*920*560(6pcs/flight case, oversized)不带灯勾位

·Net weight of flight case: 37kg

·N.W/G.W/V.W: 51kg/87kg/116kg

·Flight case package size: 1120*920*740(6pcs/flight case, oversized)(with clamps space)

·Net weight of flight case: 43kg

·N.W/G.W/V.W: 51kg/94kg/151kg

Selling Maintain Spare Parts List

·Switching power supply: VG-PB200D-P

·LED lamp board: VG-PB200D-L

·Main board: VG-PB200D-M

·Drive board: VG-PB200D-D

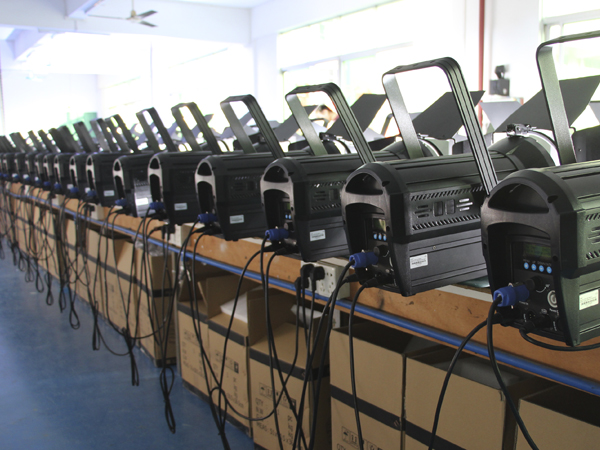

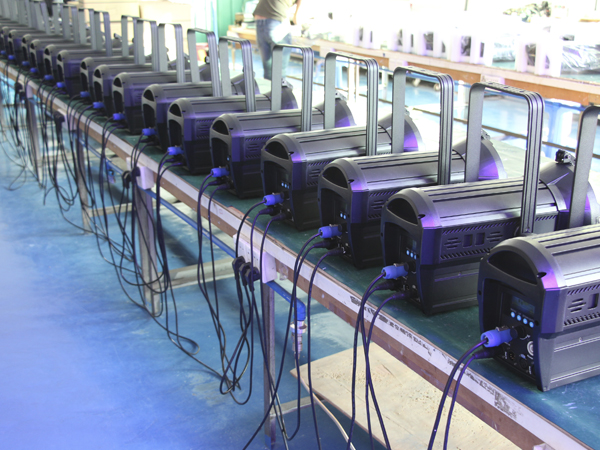

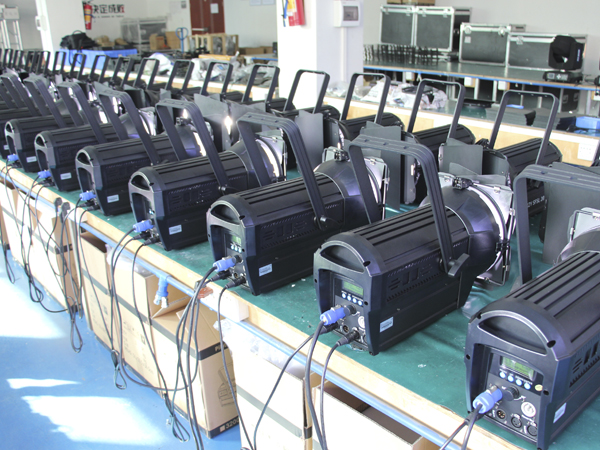

Details Pictures

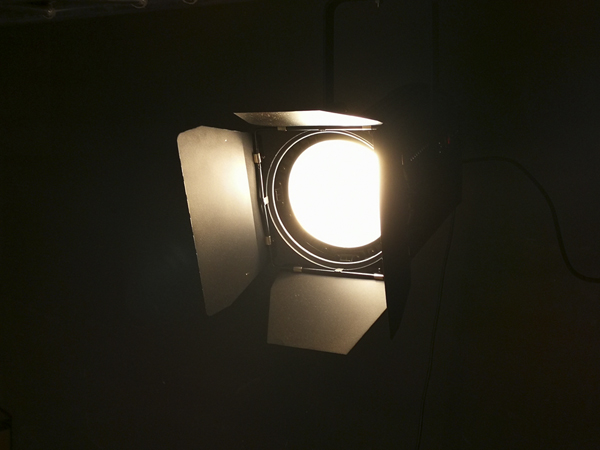

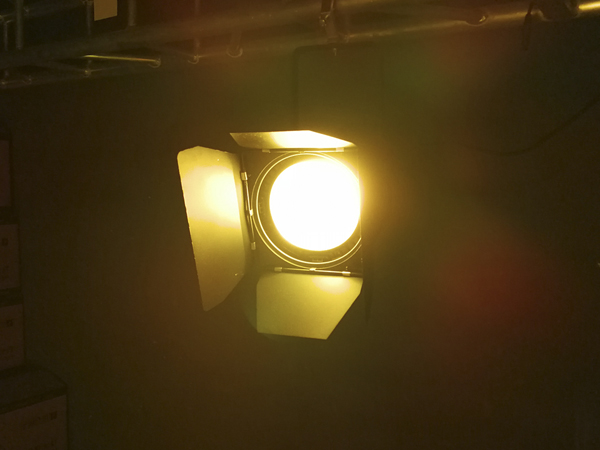

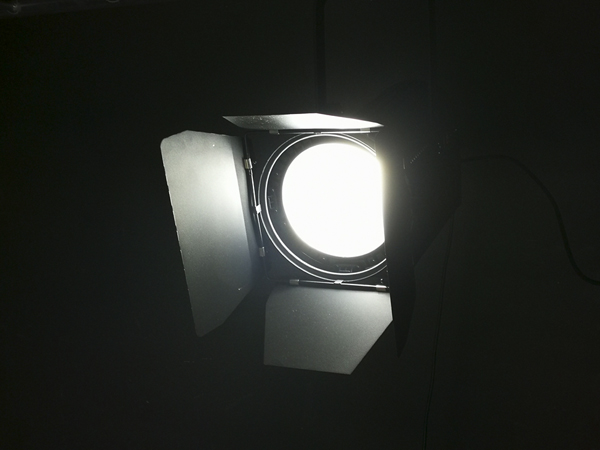

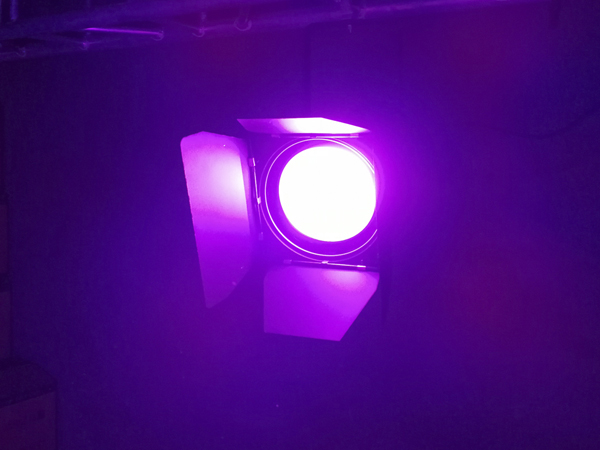

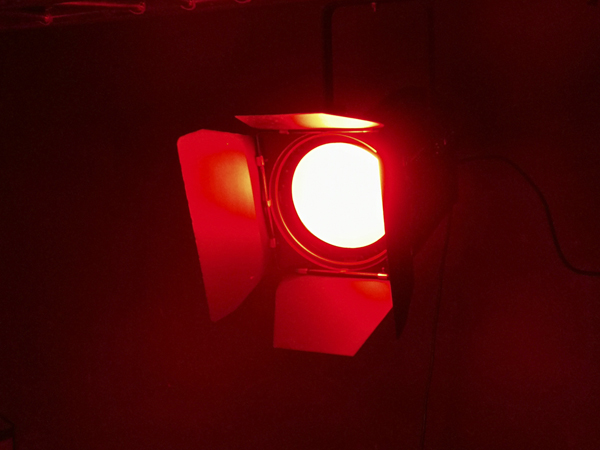

Effect Pictures
