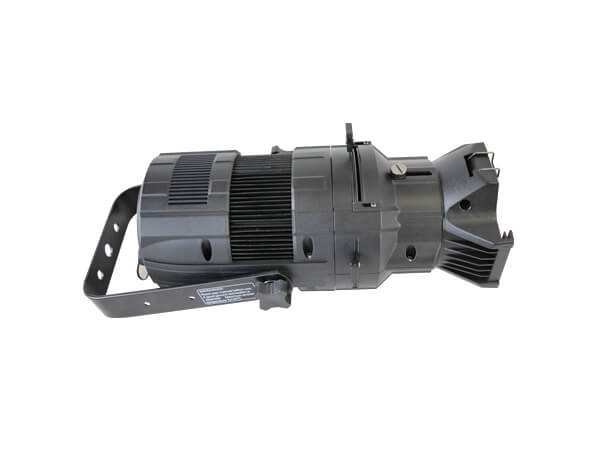

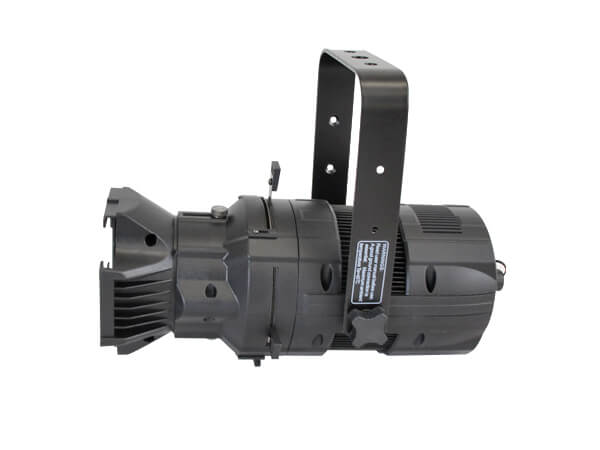

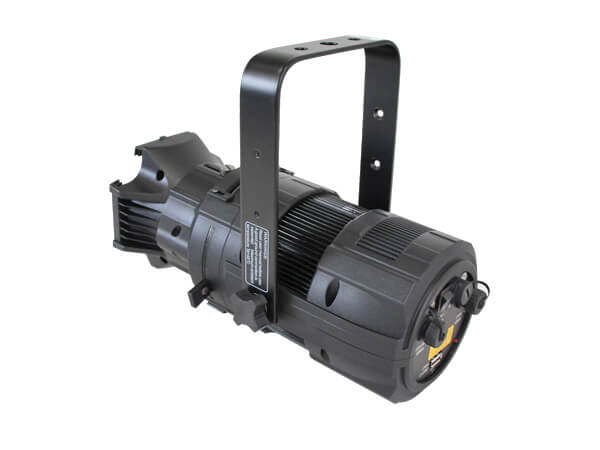

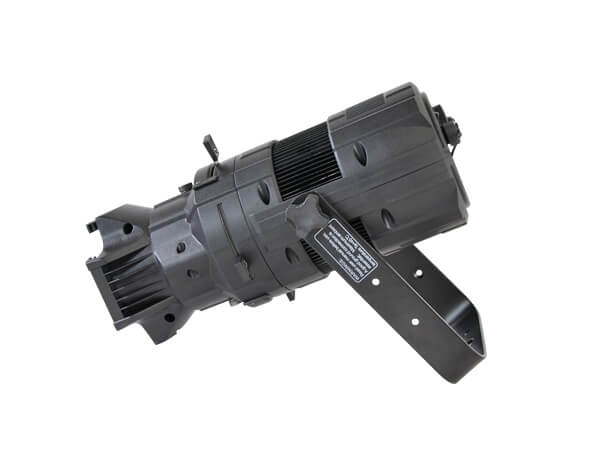

·This is a new designed mini led profile spot light, this light has high quality, brightness, and other good features. This light is very suitable for the studio, TV, theater, museum, show and other places.

Features

·Compact appearance, high quality;

·Good price, good market accept ability;

·Powerful, smooth dimmer.

Technical Specifications

Light Sources

·LED: 1pcs 50W white LED Lamp

·Lifespan: 50000h

·Color: CW or WW optional

Optics

·Beam angle: 19/26/36/50degree optional

·Dimmer: 0-100% linear dimmer

·Strobe: 1-25 times/second

·CRI: ≥93Ra

·Color temperature: 3200K/5600K optional

Light Output

·Optimal projection distance: 2-5m

Movement

·Focus: manual and pre focus

·Light cut: manual, 4 slices

Control

·Control mode: DMX-512; Master/slave mode; Demo mode

·DMX channel: 3CH

·Display of control panel: LCD display + 4 buttons

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 65W

Construction

·Body dimension: D305*W158*H161mm

·Net weight: 2kg

·Shell color: black

·Shell material: ABS(fire proofing, grease proofing, high temperature resistance)

Working Environment

·Working temperature: -25-40℃

·Cooling: massive copper tube convertor+high quality mute fan

·Protection rating: IP20

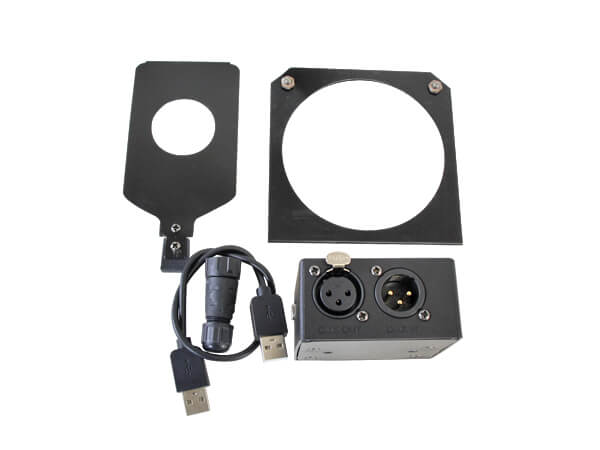

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

Optional Configuration Spare Parts List

·Clamps: different style clamps optional (choose from VanGaa homepage “Accessaries series”)

·Safety rope: different size safety ropes optional (choose from VanGaa homepage “Accessaries series”)

Package

·Carton board box package size: 390*200*200(1pc/carton)

·N.W/G.W/V.W: 2kg/3kg/3.5kg

Selling Maintain Spare Parts List

·Switching power supply: VG-LVF50A-P

·LED lamp board: VG-LVF50A -L

·Main board: VG-LVF50A -M

·Drive board: VG-LVF50A -D
