Model: VGL-6HS60D

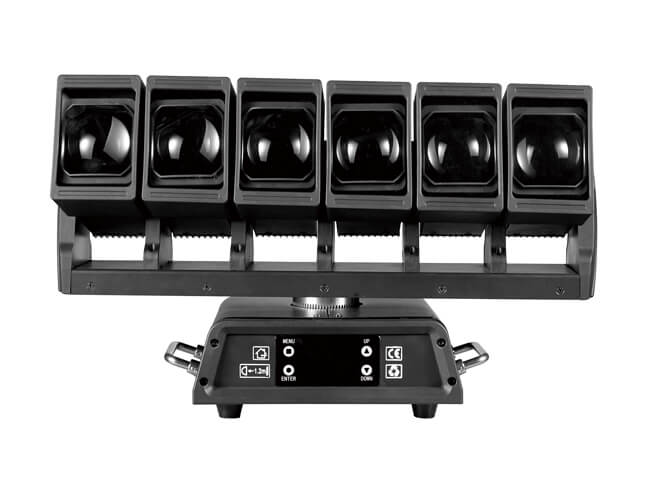

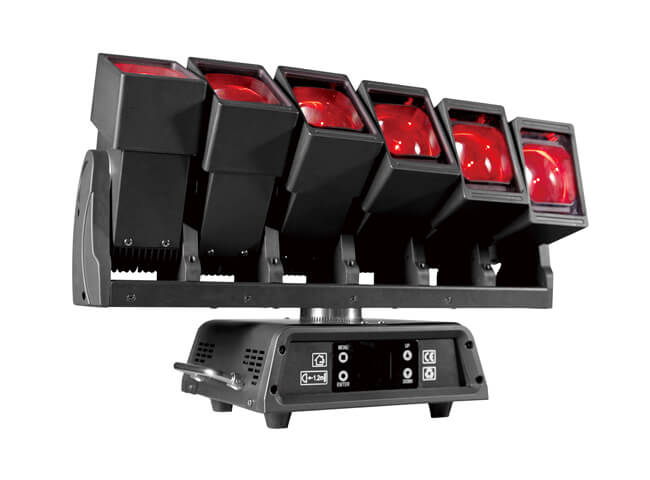

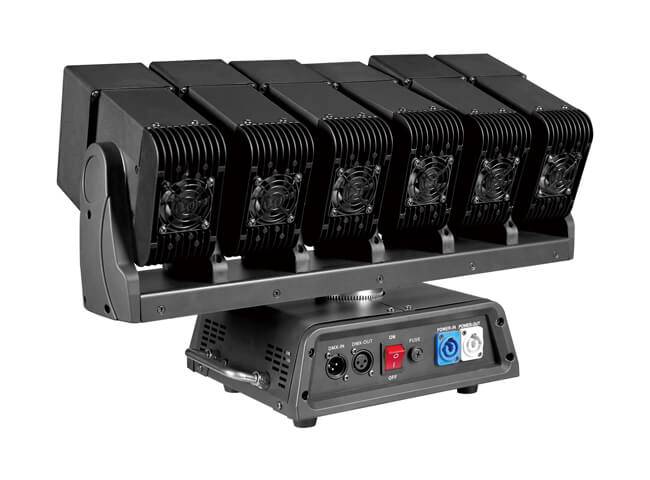

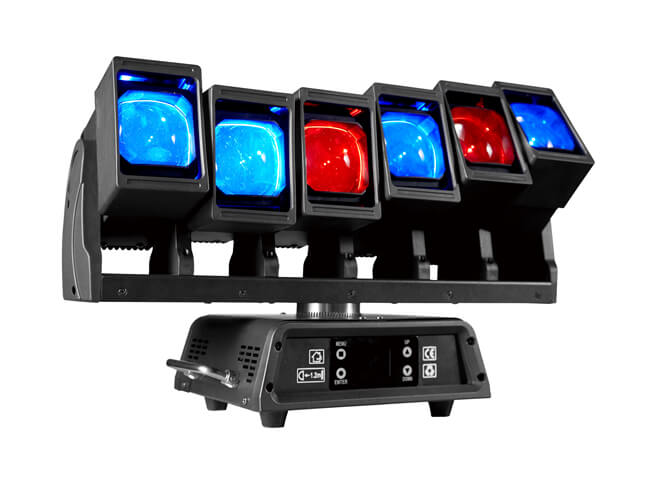

Name: 6pcs 60W Swinging Beam Moving Head Light

Product Model: VGL-6HS60D
Commissioning Date: 2025-01-05
Sales Status: Selling
Reference Price:  Inquiry Here

·This highly popular stage light, with a power output of 360W via 6pcs 60W 4in1 LED lamp beads, offers diverse control modes like DMX512. Ideal for concerts, live shows and mobile performances, it ensures stunning visual effects.

Features

·The light’s lighting function is controlled by DMX-512, very convenient;

·Using bead LED chips, pure color temperature, can realize 0-100% dimmer;

·This light can running the swing effect, very wonderful effect;

·The light body adopts outside frame design, the modeling is beautiful, installation very convenient, safe and reliable.

Technical Specifications

Light Sources

·LED6pcs 60W 4-in-1 RGBW LED lamp beads

·Lifespan: 50,000hours

·Color: RGBW color mixing

Optics

·Beam angle: 8degree

·Dimmer: 0~100% linear dimmer

Light Output

·Color temperature: 2700k-19000K adjustable

·Light output: 360W, every head 60W

·Effect: Single swing + stain + beam

Control

·DMX channel: 23CH, 28CH, 62CH, 92CH, 94CH

·Control mode: DMX-512, RDM, Demo mode, Manual

·Control panel: LCD display + 4 buttons

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 400W

Construction

·Body dimension: D545*W226* H350mm

·Net weight: 15.5kg

·Shell color: black

·Housing material: ABS

Working Environment

·Working temperature: -25-40

·Cooling: aluminum radiator and mute fan

·Protection rating: IP20

Spare Parts

·Cable: 1set DMX in and DMX out signal cable, and 1set Power in and Power out power cable with plug [standard configuration]

Package

·Carton board box package size: 650*450*400mm(1pc/carton

·N.W/G.W/V.W: 16kg/18kg/25kg

Selling Maintain Spare Parts List

·Switching power supply: VGL-6HS60D-P

·LED lamp board: VGL-6HS60D-L

·Main board: VGL-6HS60D-M

·Drive board: VGL-6HS60D-D
