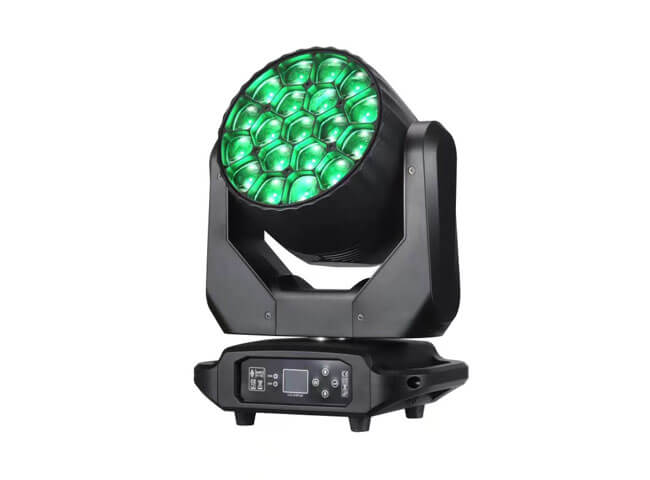

·For the need of the entertainment need, we have designed this kind big eye led moving head light. This light has the zoom and rotation function, and every led lamp (eye) can be controlled independently. This light is very suitable for the night bar, stage, TV, disco, show and other entertainment places.

Features

·Every led lamp can be controlled by DMX independently;

·Unique honeycomb design lens can be rotated to the infinite to make variety dreamy effect;

·The display of control panel can rotate 180degree automatically to adapt different installation angle;

·The light has beam, wash effect and other variety function;

·The scanning position has memory function, can be reset automatically;

·Built-in long lifespan battery can be charging automatically, so when you set the DMX address, you don’t need connect the power. [This function is optional.]

Technical Specifications

Light Sources

·LED: 19pcs RGBW 40W 4in1 LED lamps

·Lifespan: 500,000h

·Color: RGBW 4in1, color mixing

Optics

·Beam angle: 4-45degree

·CTO: linear 2500-7000K

·Dimmer: 0-100% linear dimmer

·Strobe: 1-25time/second, with various strobe effects

Movement

·Pan: 540degree, 16 bit pan fine

·Tilt: 250degree, 16 bit pan fine

Control

·Control of led: dot control

·DMX channel: 23CH, 25CH, 101CH

·Control mode: DMX 512; Auto run; Demo

·Operating modes: wash, beam, zoom

·Control panel: English version colorful display

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 800W

Construction

·Shell material: ABS

·Net weight: 15kg

·Shell color: black

Working Environment

·Working temperature: -25-40℃

·Cooling: Fan

·Protection rating: IP20

Spare Parts and Optional Configuration

·Cable: 1pc DMX signal cable, 1pc power cable [standard configuration]

·User manual: English version user manual [standard configuration]

·Clamp bridge: 1set clamp bridge [standard configuration]

·Clamp: different style clamp [optional configuration]

·Safety rope: different size safety rope [optional configuration]

·Built in battery: [optional configuration]

·Net work card: [optional configuration]

Package Information

·Carton board box package size: 540*430*520mm(1pc/carton)

·N.W/G.W: 15kg/19kg

·Flight case package size: 710*470*710mm(2pcs/box)

·N.W/G.W: 30kg/57kg
