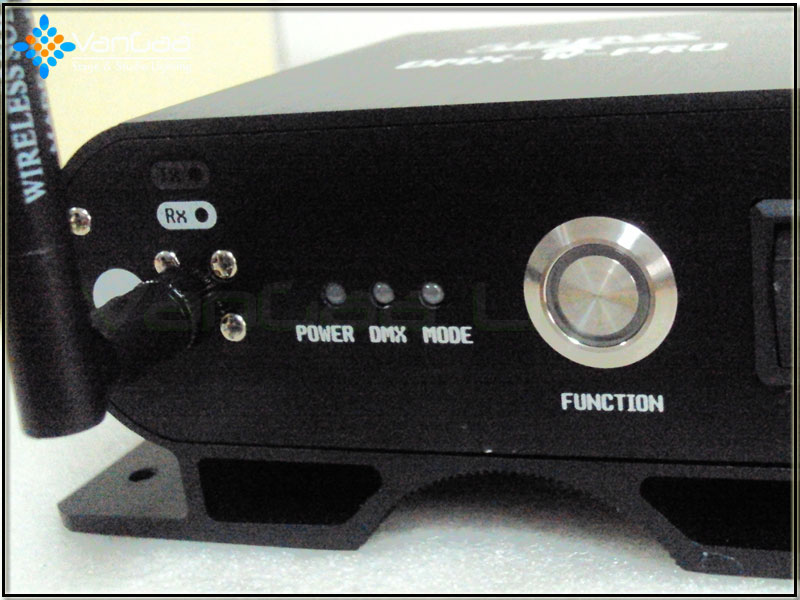

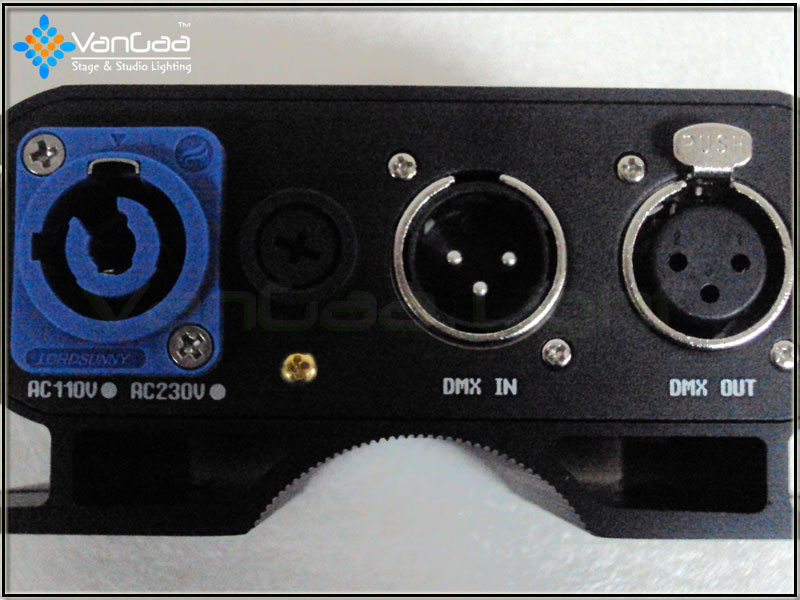

Model: VG-DWR2014

Name: 2.4G Wireless DMX-512 Transmitter and Receiver

Product Model: VG-DWR2014

Commissioning Date: 2014-01

Sales Status: Selling

Reference Price:

·To make the stage light and other DMX-512 fixtures connection more convenient, we have designed this kind wireless high signal power DMX-512 transmitter and receiver. Just connect to the signal outlet of any DMX-512 controllers, no need to connect any signal cable between the controller and the lighting equipment, the DMX-512 control system will be built between the controller and the controlled lightings. Each transmitter can control up to 512 receivers which can have up to 512 channels. These equipments are suitable for all the DMX-512 signal controlled fixtures.

Features

·High power signal 2.4G, wireless;

·Recognize the signal automatically;

·The body size of the transmitter and receiver is very small, easy for installation;

·Suitable for all kinds DMX 512 fixtures.

Specifications

·Input voltage: AC110/230V, 50/60Hz

·Power consumption: 6W

·Wireless: 2.4G

·Weight: 1kg

·Dimensions: 145*120*60mm

·Barrier free receiving range: 400meter

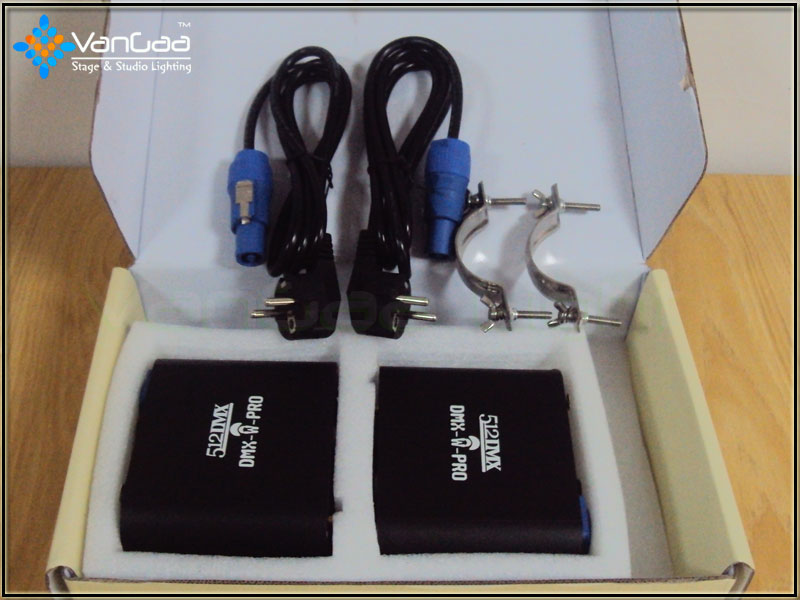

·List: Wireless DMX transmitter and receiver, power cord, C-fixing part.

·Carton board box package size: 165*140*80mm(1pc/box)

·N.W/G.W: 1kg/1.2kg

Down Load Technical Specification                                        pdf

Down Load User Manual                                                     pdf
