Model: VG-SP1-8A

Name: 8 Ways DMX Splitter A

Product Model: VG-SP1-8A

Commissioning Date: 2011-10

Sales Status: Selling

Reference Price:

·It serves as a signal distributor and booster. 1 DMX inputs to 8 DMX outputs, each equipped with 3 pin or 5 pin XLR connectors for compatibility in any DMX setup and 100% electrical isolation between all in/outputs. The booster function analyses the incoming DMX data and re-constructs it before boosting it allowing it to be pushed further down DMX lines without signal problems. With LED indicators for both signal and power, it is easy to detect error for individual channel. It’s ideal for fixed installation, mobile show, rental, etc.

Features

·Stylish and durable aluminum housing;

·DMX signal splitter and amplifier;

·100% electrical isolation between all in/outputs;

·100% electronic isolation between output/output;

·LED indicator for signal and power;

·Terminator switch for DMX signal enhancements;

·Easy installation: wall mount or desk top;

·3pin or 5pin DMX In/Out, 3pin or 5pin DMX Thru.

Specifications

·Style: 1 DMX inputs to 8 DMX outputs

·Input power: AC230V, 50Hz; AC110V, 50Hz/60Hz

·Power consumption: 10W

·Body size: 280*150*70mm

·Carton package size: 310*215*90mm (1pc/carton)

·N.W/G.W: 2kg/2.9kg





Related Products

Model: VG-SP1-8A

Name: 8 Ways DMX Splitter A

Product Model: VG-SP1-8A

Commissioning Date: 2011-10

Sales Status: Selling

Reference Price:

  • VG-SP1-8A
  • VG-SP1-8A
  • VG-SP1-8A
  • VG-SP1-8A
  • VG-SP1-8A
  • VG-SP1-8A
Technical Specification
·It serves as a signal distributor and booster. 1 DMX inputs to 8 DMX outputs, each equipped with 3 pin or 5 pin XLR connectors for compatibility in any DMX setup and 100% electrical isolation between all in/outputs. The booster function analyses the incoming DMX data and re-constructs it before boosting it allowing it to be pushed further down DMX lines without signal problems. With LED indicators for both signal and power, it is easy to detect error for individual channel. It’s ideal for fixed installation, mobile show, rental, etc.

Features

·Stylish and durable aluminum housing;

·DMX signal splitter and amplifier;

·100% electrical isolation between all in/outputs;

·100% electronic isolation between output/output;

·LED indicator for signal and power;

·Terminator switch for DMX signal enhancements;

·Easy installation: wall mount or desk top;

·3pin or 5pin DMX In/Out, 3pin or 5pin DMX Thru.

Specifications

·Style: 1 DMX inputs to 8 DMX outputs

·Input power: AC230V, 50Hz; AC110V, 50Hz/60Hz

·Power consumption: 10W

·Body size: 280*150*70mm

·Carton package size: 310*215*90mm (1pc/carton)

·N.W/G.W: 2kg/2.9kg

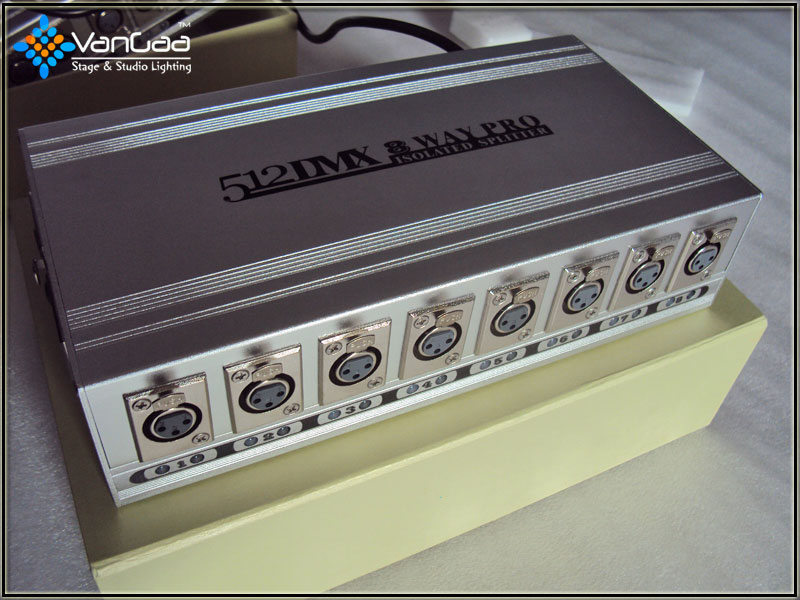

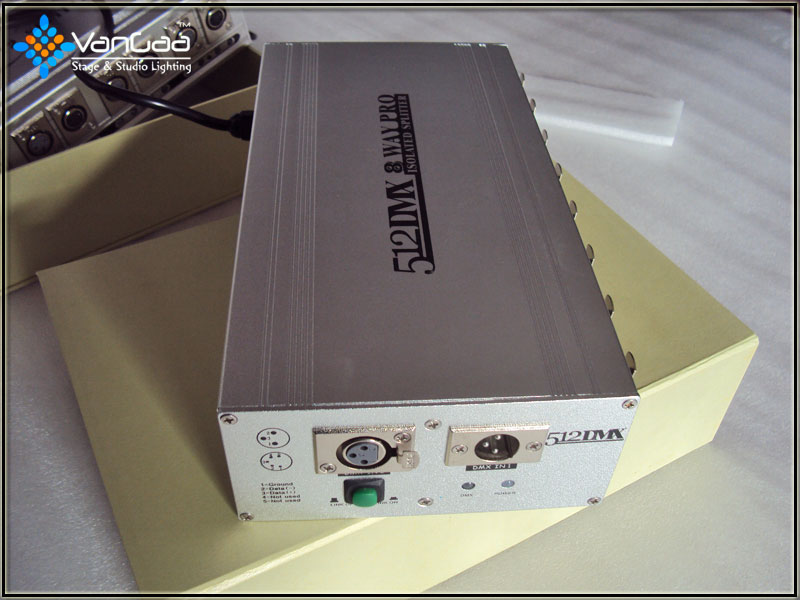

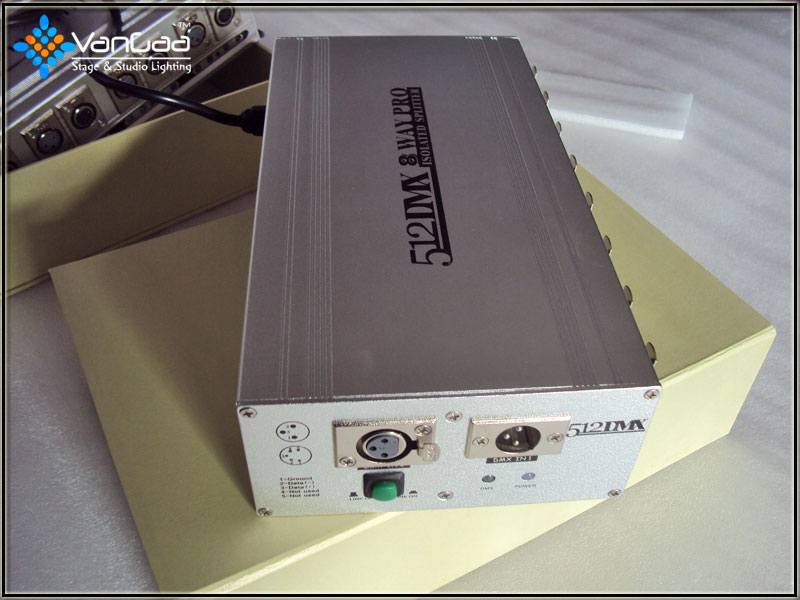

Details Pictures
