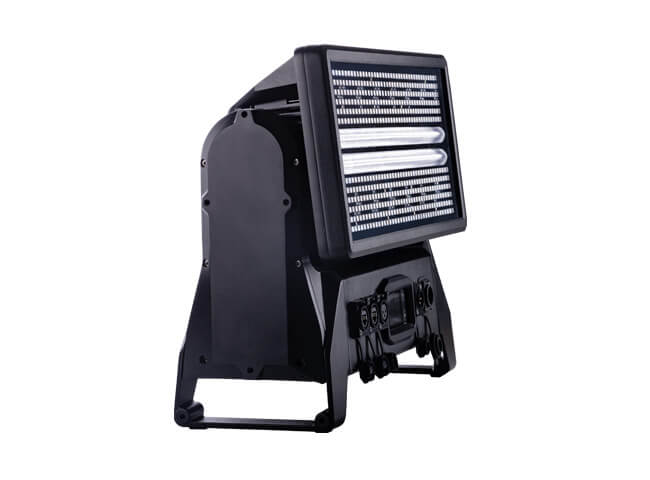

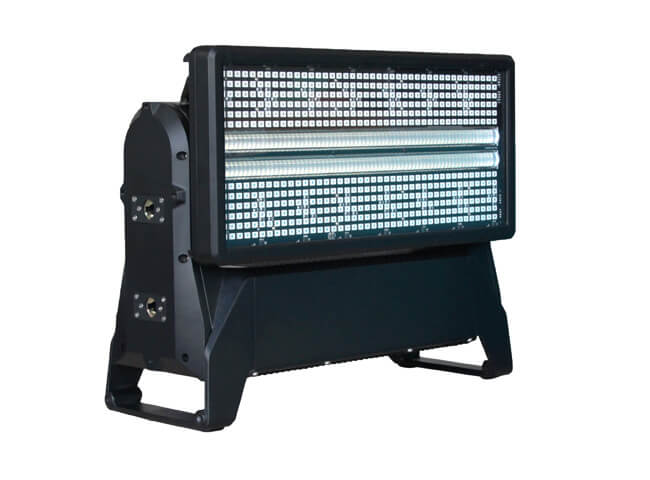

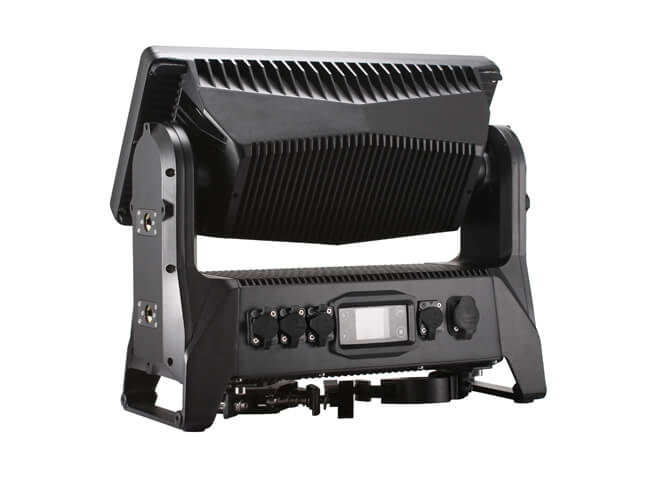

·This is a high power outdoor LED Strobe Light. This light can electronic moving the head by DMX signal. It has IP65 protect rating. The light is very suitable for large-scale performance, event and other outdoor entertainment scenes.

Features

·The light’s lighting function is controlled by DMX-512, very convenient;

·Using bead LED chips, pure color temperature for the tube, can realize 0-100% dimmer;

·The LED color panel can controlled alone.

·The light body adopts outdoor frame design, the modeling is beautiful, installation very convenient, safe and reliable.

Technical Specifications

Light Sources

·Light sources: 504pcs 1.5W 3in1 RGB LEDs, and 280pcs 5W white LEDs

·Lifespan: 50,000hours

·Color: RGB color mixing in panel, 2pcs white tubes

·Controllable partitions: 14 RGB plate, 28 white pixels

Optics

·Beam angle: RGB panel 120degree, white tubes 60degree

·Dimmer: 0~100% linear dimmer

·CRI of white color: 6500K more than 80Ra

Control

·DMX channel: 8CH/18CH/25CH/95CH

·Control mode: DMX-512, RDM, W-DMX Art-net, SacnDemo mode, Manual

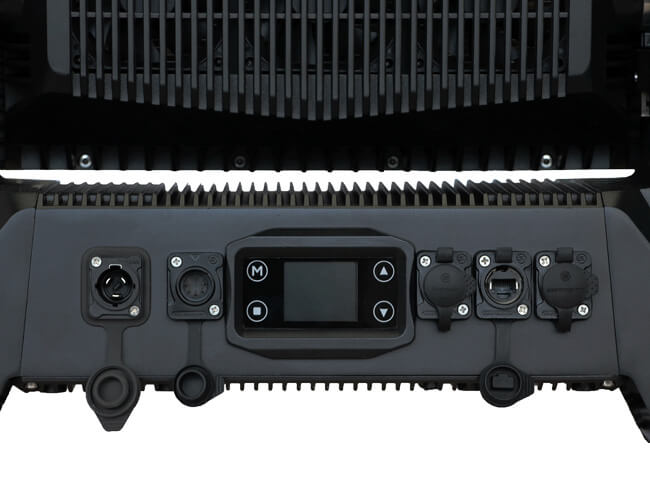

·Control panel: Illuminated Graphics LCD/Touch Interactive Panel+4 buttons

·Wireless control: 2.4 GHz W-DMX™ (optional)

·Operating position: Any position

Effect

·Dimmer: 0-100% electronic dimming

·Dim curves: with 4 dimming curves

·Dimming speed: 5 levels

·Strobe mode: 6 different

·Customize strobe duration: 0-650hm

·Special effect: Wide selection of built-in effects

·Shutter: Electronic, up to 24 Hz

·Macro effect: Internal effects LED macro effect

Power Supply

·Related voltage: AC90V-240V, 50/60Hz

·Related power: 1500W

·Peak power consumption 1500W

Construction

·Body dimension: D570*W265*H109mm

·Net weight: 5.5kg

·Shell color: black

·Housing material: aluminum alloy

Working Environment

·Working temperature: -30°C / 86°F, 50°C / 122°F

·Cooling: Aluminum heat sink with strong convection smart air cooling system

·IP rating: IP66, rated bi-directional PWM programmable cooling fan

·Intelligent Control: Temperature controlled, overheat protection

Connectors

·Signal connections: Seetronic IP65 XLR 3-pin I/O

·Wireless communication: wireless solution - W-DMX

·Power input connection: Seetronic PowerCON TRUE1 input

Mounting Method

·Suspension Omega bracket / Folding one-piece bracket

·Safety wire connection: Folding eyelet

Spare Parts

·Cable: 1set DMX in and DMX out signal cable, and 1set Power in and Power out power cable with plug [standard configuration]

Selling Maintain Spare Parts List

·Switching power supply: VGL-MST1500-P

·LED lamp board: VGL-MST1500-L

·Main board: VGL-MST1500-M

·Drive board: VGL-MST1500-D
