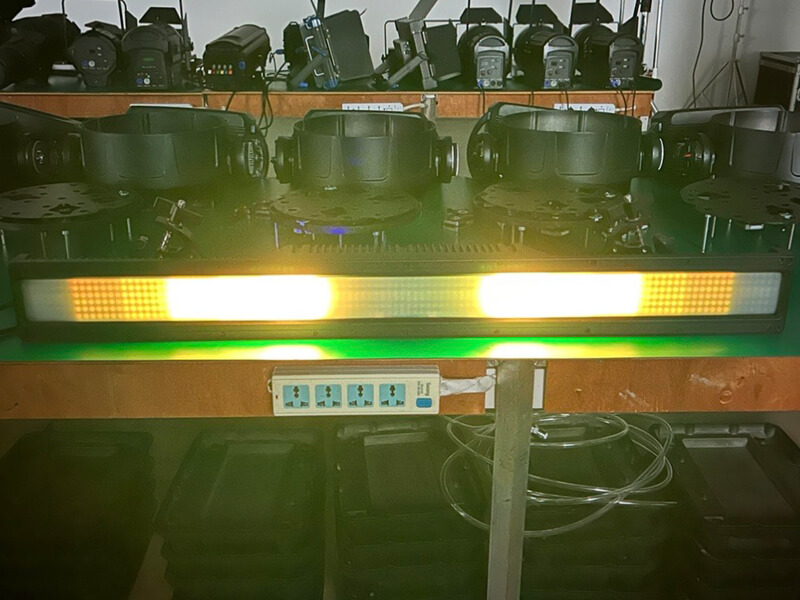

·This specially designed splittable long IP67 LED strobe light to meet the various needs of outdoor cultural tourism and outdoor performances has a unique charm. It can not only be spliced horizontally, but also has rich functions such as galloping, flashing, frost etc., and can highly adapt and fully meet various needs of various large, medium and small outdoor performances. Its excellent performance and innovative design will bring you an unparalleled shocking experience, making every outdoor performance brilliant and memorable.

Features

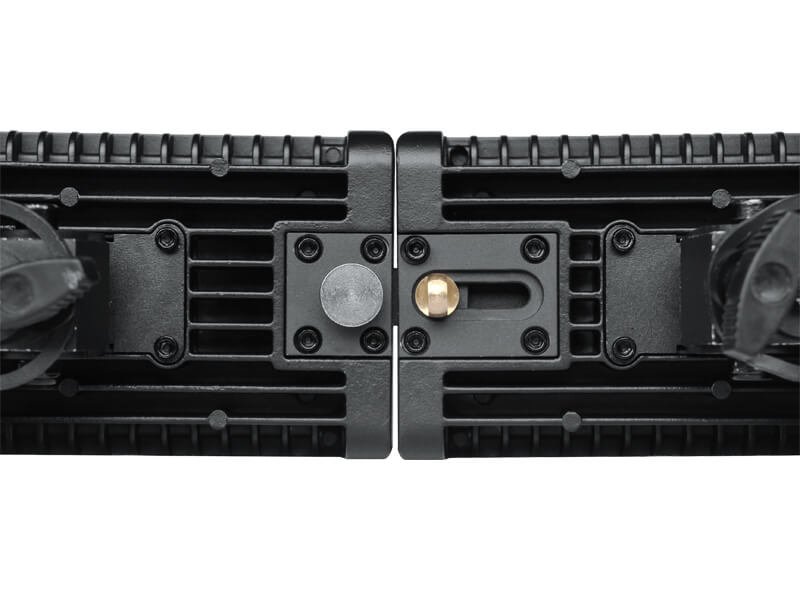

·Versatile splicing ability: Can be spliced horizontally.

·Rich stage effects: Incorporates strobe, water running, and more.

·Unique atomization feature: Controls the atomization effect via DMX signal.

·Outstanding waterproofing: IP67 level for outdoor use.

·High-quality LED technology: Ensures bright and clear lighting.

·Durable and reliable design: Built to withstand various conditions.

Technical Specifications

Light Sources

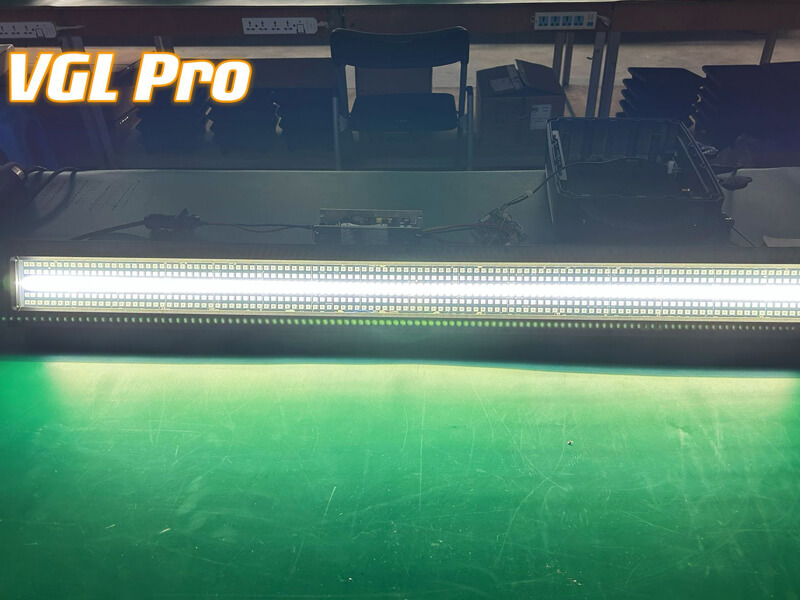

·LED: 672pcs 0.3W RGB LEDs, and 112pcs 3W White LEDs

·Lifespan: 50,000hours

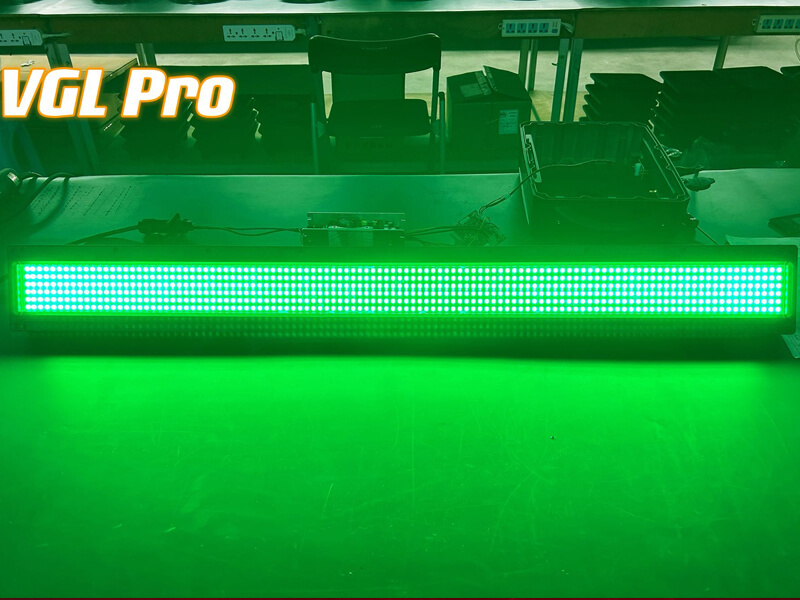

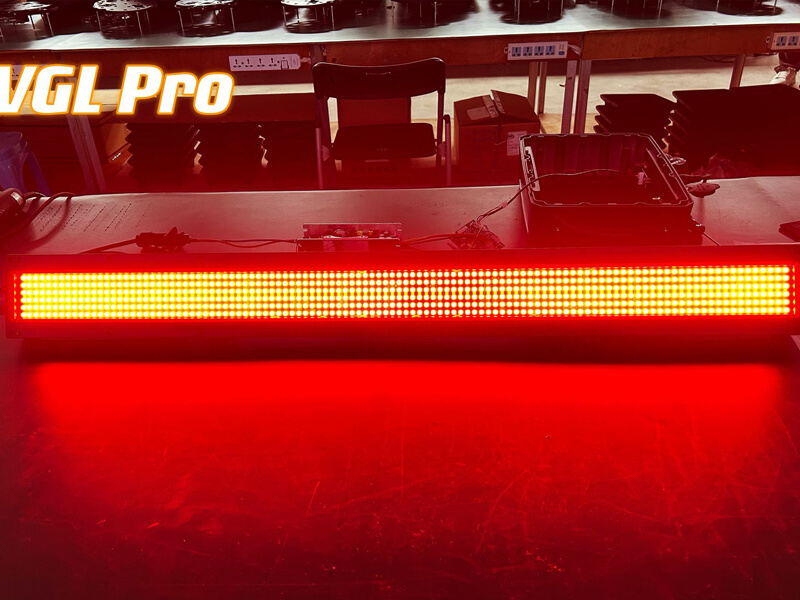

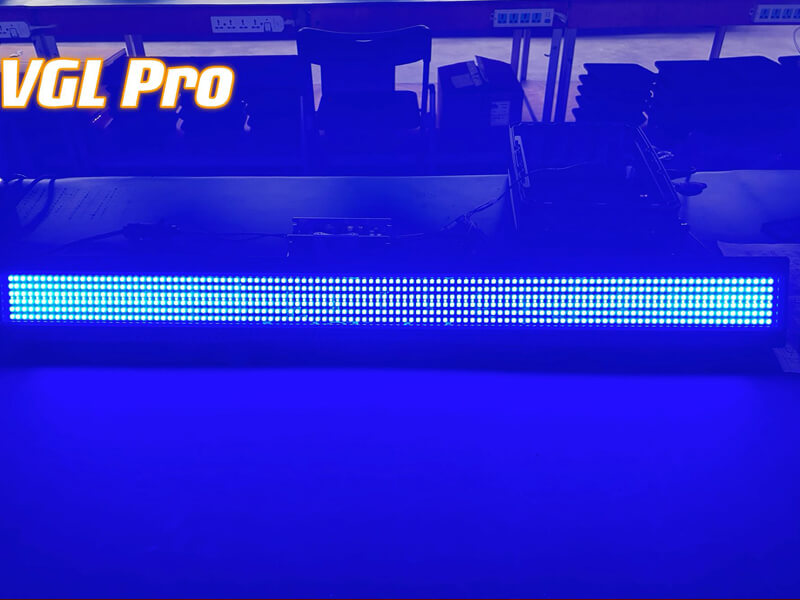

·Color: RGB+W color mixing

Optics

·Beam angle: 120degree

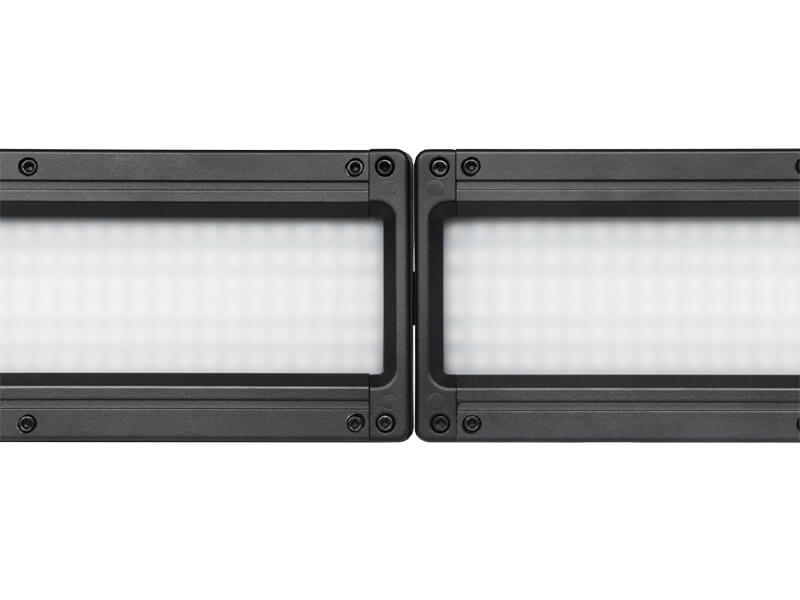

·Optic: frost glass + tempered glass

Effect

·Dimmer: 0~100% linear dimmer, 16bit

·Strobe: Max 20 flashes/second

·Special effect: strobe +water running + frost

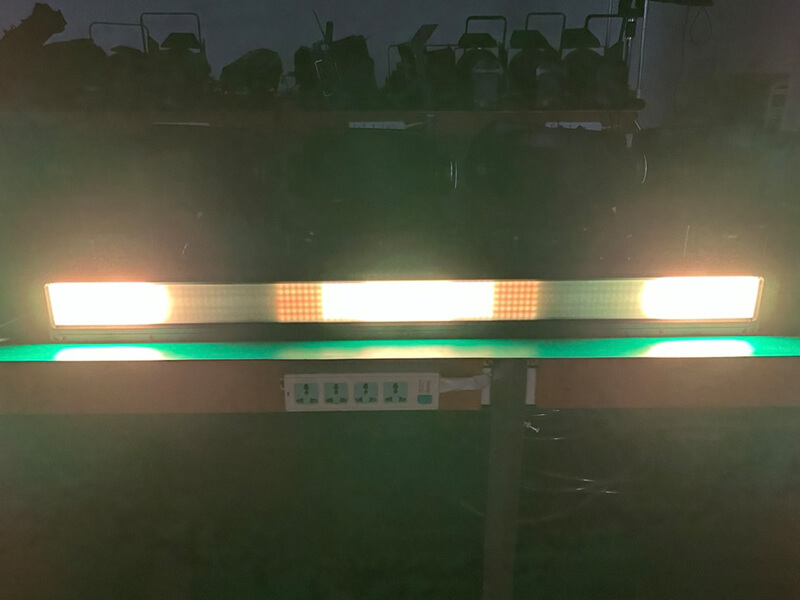

·Segment: 16 segments control

Control

·DMX channel: CH17, CH07, CH15, CH21, CH39, CH112, CH17, CH33, CH65, CH68, CH117, CH70

·Control mode: DMX-512, RDM, Demo mode, Manual, Master/slave

·Control panel: LCD display + 4 buttons

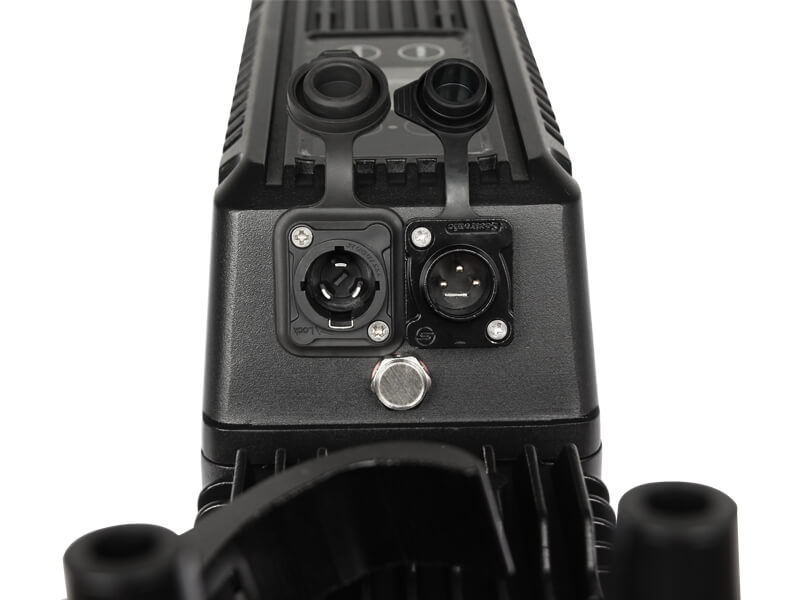

·DMX in and out: 3pin(5pin optional) DMX XRL in and out

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: Max 350W

·Power in and out: Seetronic powercon in and out

Construction

·Body dimension: D1000*W108*H130mm

·Net weight: 8.2kg

·Shell color: black

·Housing material: aluminum alloy

Working Environment

·Working temperature: -25-40℃

·Cooling: aluminum radiator and light body

·Protection rating: IP67

Standard Configuration Spare Parts

·Cable: 1pcs 1.5m DMX cable, 1pcs 1.5m power cable

·Clamps: 2pcs folding style clamps

·User manual: English version user manual

Package

·Flight case package size: 1070*570*640mm(8pc/case)

·N.W/G.W/V.W: 66kg/103kg/78kg

Selling Maintain Spare Parts List

·Switching power supply: VG-LST1100-P

·LED lamp board: VG-LST1100-L

·Main board: VG-LST1100-M

·Drive board: VG-LST1100-D
